Keysight (Agilent) 8447D
1.3GHz RF Pre-Amplifier
100 kHz to 1.3 GHz Frequency Range
25 dB (typical) Gain
8 dB (typical) Noise Figure
+10 dBm Maximum Input Power
+13 dBm (typical) Output Power at 1 dB Compression
| Attribute | Value |
|---|---|
| Frequency Range | 100 kHz to 1.3 GHz |
| Gain | 25 dB (typical) |
| Noise Figure | 8 dB (typical) |
| Maximum Input Power | +10 dBm |
| Output Power at 1 dB Compression | +13 dBm (typical) |
| Connector Type | BNC (female) |
| Input/Output Impedance | 50 Ohms |
| Power Supply Requirement | +15 VDC (via BNC center conductor) or external power supply |
| Operating Temperature Range | 0°C to +55°C |
| Dimensions (W x H x D) | Approximately 34.9 mm x 34.9 mm x 82.6 mm (1.37 in x 1.37 in x 3.25 in) |
Keysight Technologies 8447D Options:
- 8447D - 001 - Dual-channel amp BNC (f) connectors
- 8447D - 010 - Single-channel amp Type-N (f) connectors
- 8447D - 011 - Dual-channel amp Type-N (f) connectors
| Model | 8447D |
|---|

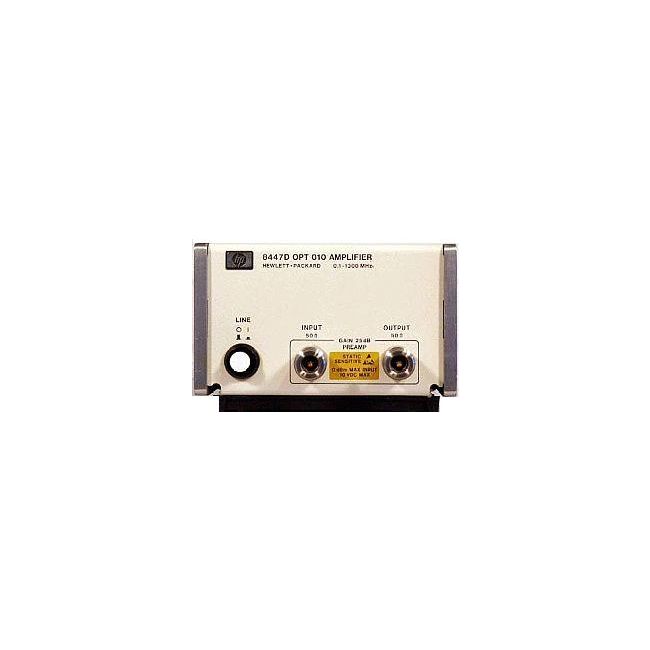

The Keysight (Agilent) 8447D RF Amplifier is a low-noise, high-gain amplifier delivering over 25 dB gain with a noise figure of +7 dBm. Optimized for enhancing sensitivity in RF voltmeters, counters, spectrum analyzers, EMI meters, and power meters, it also boosts output from signal generators and sweepers. With output power exceeding +7 dBm at 1 dB gain compression, the 8447D is ideal for precision signal conditioning in RF test environments.
Its compact and efficient design ensures signal clarity and stability across applications.
Testwall can supply the used Keysight (Agilent) 8447D, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 8447D.
