Keysight (Agilent) 8497K
| Attribute | Value |
|---|---|
| Attenuation Range | 0 to 90 dB |
| Frequency Range | DC to 18 GHz |
| Attenuation Step Size | 10 dB per step |
| Number of Steps | 9 steps |
| Connector Type | APC-3.5 (SMA compatible) |
| Maximum Input Power | 1 W (average) |
| Impedance | 50 Ohm |
| VSWR (Maximum) | 1.6:1 |
| Insertion Loss (0 dB setting) | 2.5 dB maximum at 18 GHz |
| Attenuator Type | Mechanical Step Attenuator |
Keysight Technologies 8497K Options:
- 8497K - Std. - Supply voltage 20 to 30 Vdc (nom. 24 Vdc), 125 mA
- 8497K - 011 - Supply voltage 4.5 to 7 Vdc (nom. 5 Vdc), 300 mA
- 8497K - 015 - Supply voltage 13 to 22 Vdc (nom. 15 Vdc), 187 mA
- 8497K - 001 - N (f) RF connector
- 8497K - 002 - SMA (f) RF connector
- 8497K - 003 - APC-7 RF connector
- 8497K - 008 - 8-inch ribbon cable with 14-pin DIP plug (DC connector)
- 8497K - 016 - 16-inch ribbon cable with 14-pin DIP plug (DC connector)
- 8497K - UK6 - Commercial calibration test data with certificate
- 8497K - UKS - Commercial calibration certificate
| Model | 8497K |
|---|

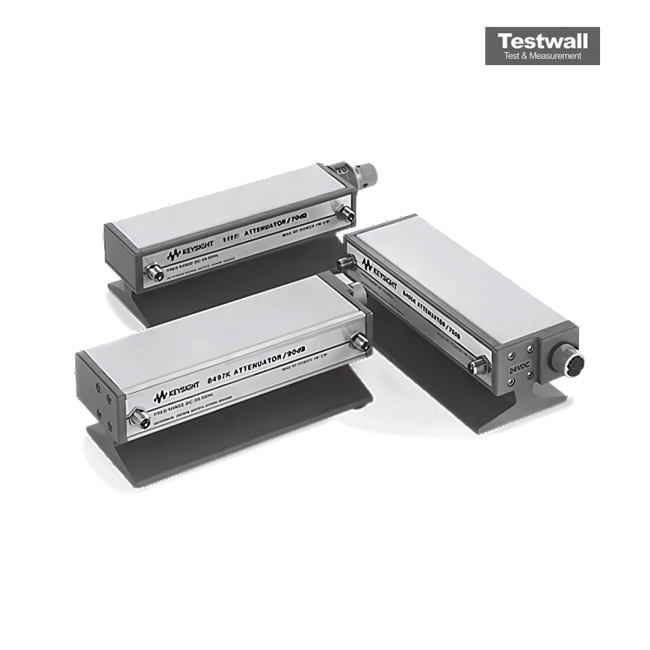

The Keysight (Agilent) 8497K is a programmable step attenuator with frequency support from DC to 26.5 GHz, offering precise 10 dB steps up to 90 dB. It ensures high repeatability with gold-plated leaf springs rated for over 5 million cycles, and offers low insertion loss and reliable SWR performance across a wide range.
Used in automated testing, it delivers swift 20 ms switching and supports customizable configurations with interconnect kits for expanded dynamic range in 1 dB steps.
Testwall can supply the used Keysight (Agilent) 8497K, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 8497K
