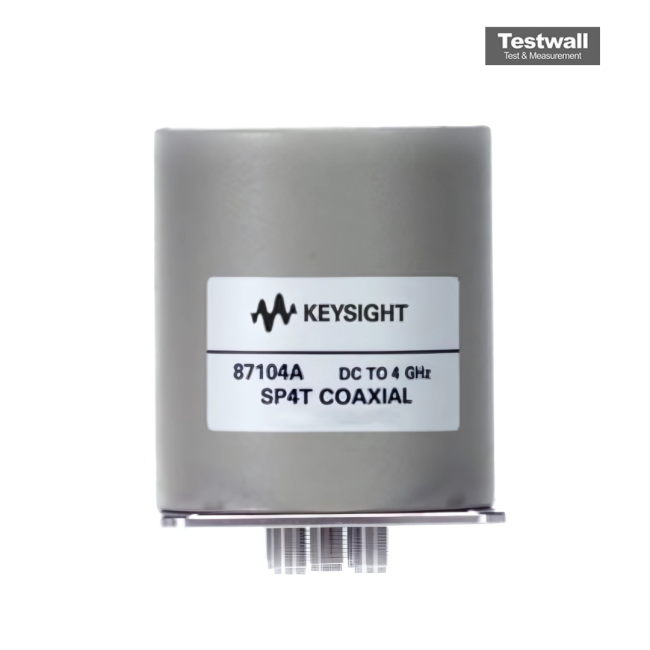

Keysight (Agilent) 87104A
DC to 4GHz Multiport RF Switch
DC to 26.5 GHz Frequency Range
4 Number of Ports
5.0 dB typical Insertion Loss
70 dB typical Isolation
20 ms typical Switching Speed
| Attribute | Value |
|---|---|
| Frequency Range | DC to 26.5 GHz |
| Number of Ports | 4 |
| Insertion Loss | 5.0 dB typical |
| Isolation | 70 dB typical |
| Switching Speed | 20 ms typical |
| Connector Type | 2.92 mm (K) female |
| Control Interface | TTL compatible, positive logic |
| Operating Temperature | 0°C to +55°C |
| Power Supply Voltage | +24 VDC |
| VSWR | 1.8:1 typical |
| Model | 87104A |
|---|
The Keysight (Agilent) 87104A SP4T multiport switch offers magnetic latching, excellent RF repeatability, and over 10 million operating cycles, ensuring exceptional performance for automated test systems.
It features terminated ports, TTL/5V CMOS compatibility, and superior isolation of over 90 dB at 26.5 GHz, perfect for signal routing and monitoring.
Testwall can supply the used Keysight (Agilent) 87104A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 87104A.
