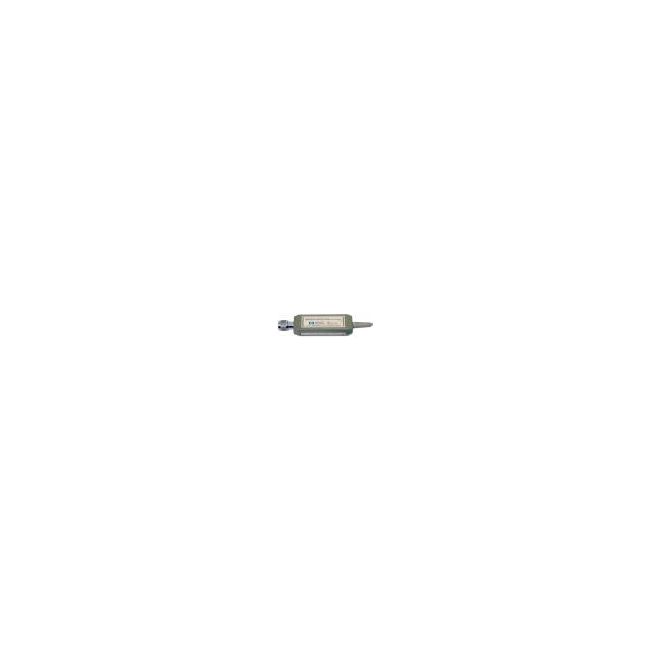

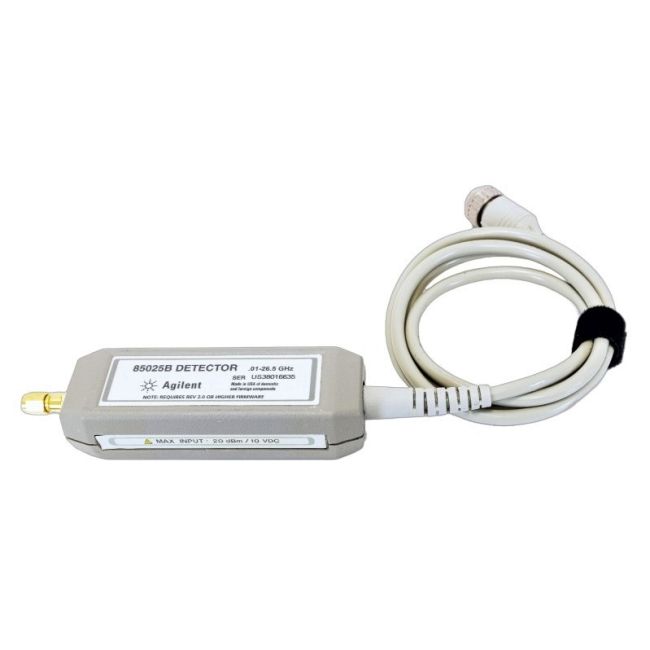

Keysight (Agilent) 85025B
| Attribute | Value |
|---|---|
| Frequency Range | DC to 26.5 GHz |
| Detector Type | Coaxial Schottky Diode Detector |
| Connector Type | APC-3.5 (SMA Compatible) |
| Impedance | 50 Ohms |
| Maximum Input Power | 200 mW (23 dBm) |
| Output Voltage Range | 0 to +400 mV |
| Video Resistance | 100 kOhms |
| Tangential Signal Sensitivity (TSS) | -53 dBm typical at 10 GHz |
| VSWR | 1.4:1 maximum (DC to 26.5 GHz) |
| Operating Temperature Range | 0°C to +55°C |
| Model | 85025B |
|---|
The Keysight (Agilent) 85025B detector is designed for compatibility exclusively with the 8757D scalar network analyzer and supports both ac and dc signal detection. It operates over a wide frequency range of 10 MHz to 26.5 GHz, with a dynamic range of +16 to -55 dBm (ac) and +16 to -50 dBm (dc). Input impedance is 50 ohms, using a 3.5 mm(m) connector.
This detector is ideal for precision microwave signal measurements and is not compatible with models 8756 or 8755, making it tailored for specific analytical applications.
Testwall can supply the used Keysight (Agilent) 85025B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 85025B.
