Keysight (Agilent)

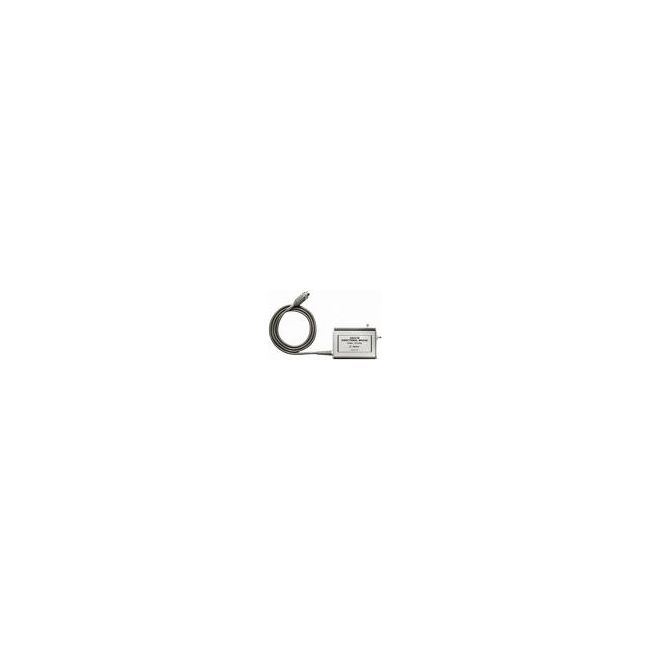

Keysight (Agilent) 85027E
Directional Bridge
300 kHz to 3 GHz Frequency Range
40 dB minimum Directivity
38 dB minimum Source Match
38 dB minimum Load Match
Type-N (50 Ohm) Connector Type
| Attribute | Value |
|---|---|
| Frequency Range | 300 kHz to 3 GHz |
| Directivity | 40 dB minimum |
| Source Match | 38 dB minimum |
| Load Match | 38 dB minimum |
| Connector Type | Type-N (50 Ohm) |
| Impedance | 50 Ohm |
| Maximum Input Power | 300 mW (24.8 dBm) |
| Insertion Loss | Less than 1 dB |
| Tracking | ±0.5 dB |
| Compatible Instruments | Keysight/Agilent Vector Network Analyzers and Scalar Network Analyzers |
| Model | 85027E |
|---|
The Keysight (Agilent) 85027E Directional Bridge supports AC and DC detection modes, making it ideal for use with Agilent 8757, 8756, and 8755 scalar network analyzers. It provides high directivity, excellent test port match, and operates up to 26.5 GHz in coaxial systems.
Perfect for precision RF measurements, the 85027E's flexible detection compatibility and broad frequency range make it a valuable component in test setups.
Testwall can supply the used Keysight (Agilent) 85027E, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 85027E.
