Keysight (Agilent) 8504B
| Attribute | Value |
|---|---|
| Measurement Range | 1300 nm to 1550 nm |
| Wavelength Accuracy | ±2 nm |
| Distance Measurement Range | 0 to 2 m (optical path length) |
| Distance Resolution | 0.1 µm |
| Distance Accuracy | ±0.5 µm |
| Light Source Type | Broadband (white light) interferometer source |
| Instrument Type | Precision Reflectometer |
| Dynamic Range | Up to 55 dB |
| Interface/Connectivity | GPIB (IEEE-488) |
| Input Connector Type | FC/APC optical connector |
Keysight Technologies 8504B Options:
- 8504B - 001 - Reference extension cables (40, 50, 75, 100, 125, 150, and 175 cm lengths)
| Model | 8504B |
|---|

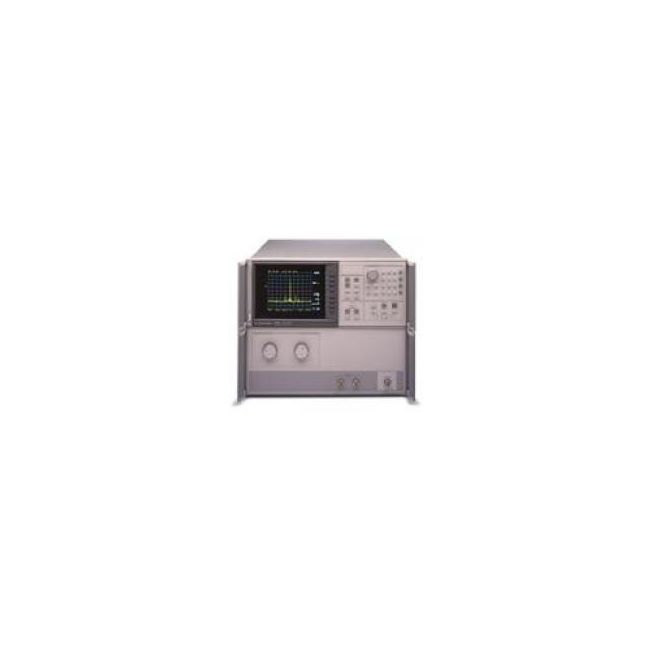

The Keysight (Agilent) 8504B Precision Reflectometer delivers advanced lightwave reflection analysis with individual reflection measurements displayed by distance or position. Capable of return loss measurements exceeding 80 dB, it identifies closely spaced reflections even within 25 µm separation.
Designed for high-resolution optical testing, it ensures precise detection and analysis of reflection points in complex optical systems, supporting stringent lab and field requirements.
Testwall can supply the used Keysight (Agilent) 8504B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 8504B.
