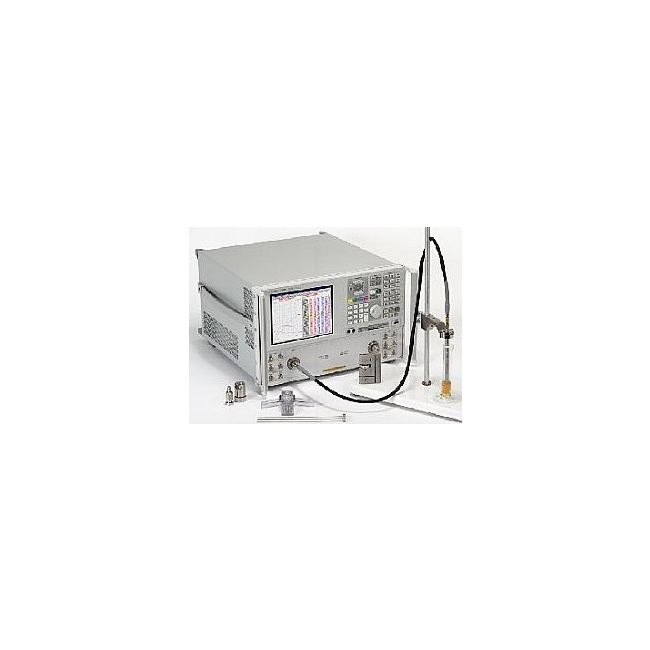

Keysight (Agilent) 8507B
| Attribute | Value |
|---|---|
| Frequency Range | 300 kHz to 1.8 GHz |
| Measurement Parameters | S-parameters (S11, S21, S12, S22), impedance, admittance, reflection coefficient |
| Connector Type | 7 mm APC-7 connectors |
| Dynamic Range | Up to 100 dB |
| Output Power Range | -60 dBm to +10 dBm |
| Impedance | 50 Ohm |
| Display | Built-in CRT display with multiple trace formats |
| Interface | HP-IB (GPIB) interface for remote operation |
| Calibration | Full 2-port calibration supported including SOLT (Short-Open-Load-Thru) |
| Power Requirements | 100/120/220/240 VAC, 48-66 Hz |
| Model | 8507B |
|---|
The Keysight (Agilent) 8507B is a precision scalar network analyzer tailored for high-accuracy RF measurements. It supports a broad dynamic range, ensuring detailed signal characterization for component evaluation and system diagnostics. Its robust architecture allows stable and repeatable measurements, ideal for laboratory and field applications within RF and microwave testing environments.
This analyzer excels in system verification and RF component testing, making it indispensable for engineers and technicians who require dependable and precise scalar analysis across various use cases.
Testwall can supply the used Keysight (Agilent) 8507B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 8507B.
