Keysight (Agilent) 8512A
| Attribute | Value |
|---|---|
| Frequency Range | 45 MHz to 26.5 GHz |
| Measurement Type | Transmission/Reflection Test Set |
| Connector Type | APC-3.5 (3.5 mm) |
| Compatible Analyzer | HP/Agilent 8510 Series Vector Network Analyzer |
| Number of Ports | 2-Port |
| Dynamic Range | Up to 100 dB |
| Test Port Power | -15 dBm to +10 dBm |
| Impedance | 50 Ohm |
| S-Parameter Measurements | S11, S21, S12, S22 |
| Power Requirements | 100/120/220/240 VAC, 50/60 Hz |
| Model | 8512A |
|---|

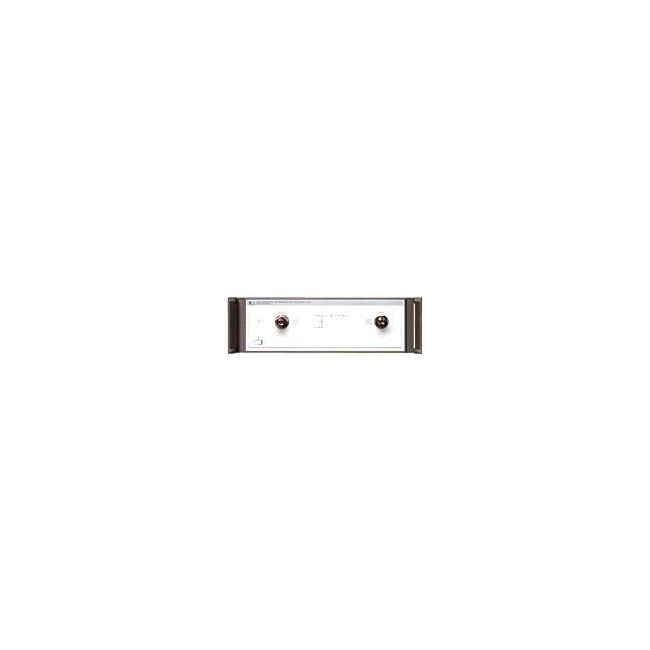

The Keysight (Agilent) 8512A Reflection/Transmission Test Set enables accurate complex reflection and transmission measurements from 45 MHz to 18 GHz (transmission) and 500 MHz to 18 GHz (reflection), with limited dynamic range extension to 45 MHz. Featuring rugged 7 mm connectors and a three-channel frequency converter, it delivers superior dynamic range and precision.
Ideal for S-parameter testing (S11, S21), the 8512A uses a single coupler and lacks internal step attenuators and bias tees, requiring external configurations for incident power control or DC biasing.
Testwall can supply the used Keysight (Agilent) 8512A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 8512A.
