Keysight (Agilent) 85130F
| Attribute | Value |
|---|---|
| Cable Type | NMD 3.5mm to Type-N Adapter Cable |
| Cable Length | 1.2 m (4 ft) |
| Frequency Range | DC to 26.5 GHz |
| Connector Type (End 1) | 3.5mm (m) |
| Connector Type (End 2) | Type-N (m) |
| Impedance | 50 Ohm |
| Compatible Instruments | 8510C Vector Network Analyzer System |
| Cable Construction | Flexible microwave coaxial cable |
| Typical Insertion Loss | Less than 2 dB at 26.5 GHz |
| VSWR (Typical) | Less than 1.4:1 at 26.5 GHz |
| Model | 85130F |
|---|

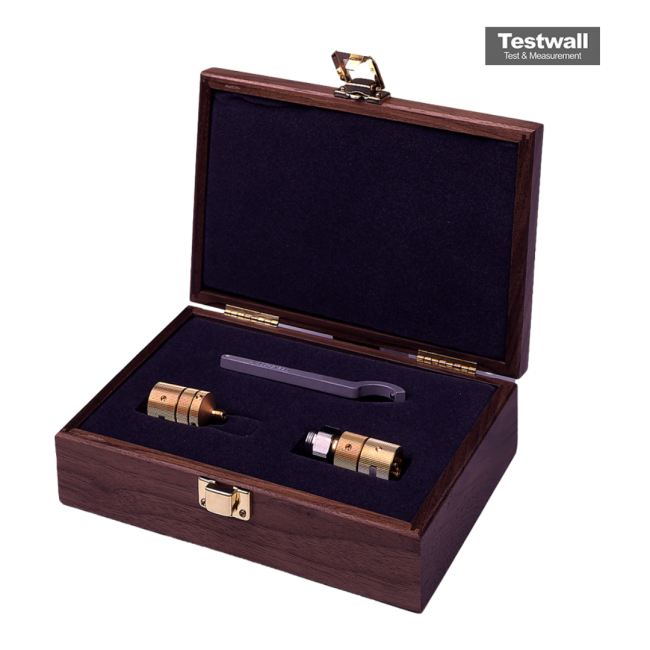

The Keysight (Agilent) 85130F test port adapter includes a rugged female connector specifically designed for network analyzer test ports. It ensures a reliable interface with the device under test via specialized 2.4 mm to PSC-3.5 mm male and female adapters. This configuration supports frequencies from DC to 26.5 GHz, maintaining a return loss of 26 dB or better for high-precision testing.
The adapter protects sensitive test equipment from direct connection and facilitates compatibility with various DUT configurations, ideal for consistent and accurate high-frequency measurements.
Testwall can supply the used Keysight (Agilent) 85130F, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 85130F.
