Keysight (Agilent) 85133C
| Attribute | Value |
|---|---|
| Cable Type | Flexible Test Port Cable |
| Connector Type | 3.5mm (male) to 3.5mm (male) |
| Frequency Range | DC to 26.5 GHz |
| Cable Length | 24 inches (610 mm) |
| Impedance | 50 Ohm |
| VSWR (Typical) | 1.35:1 at 26.5 GHz |
| Insertion Loss (Typical) | 2.5 dB at 26.5 GHz |
| Phase Stability (Typical) | ±3 degrees at 26.5 GHz |
| Amplitude Stability (Typical) | ±0.08 dB at 26.5 GHz |
| Compatible Instruments | Keysight PNA, ENA, and 8510 Series Network Analyzers |
| Model | 85133C |
|---|

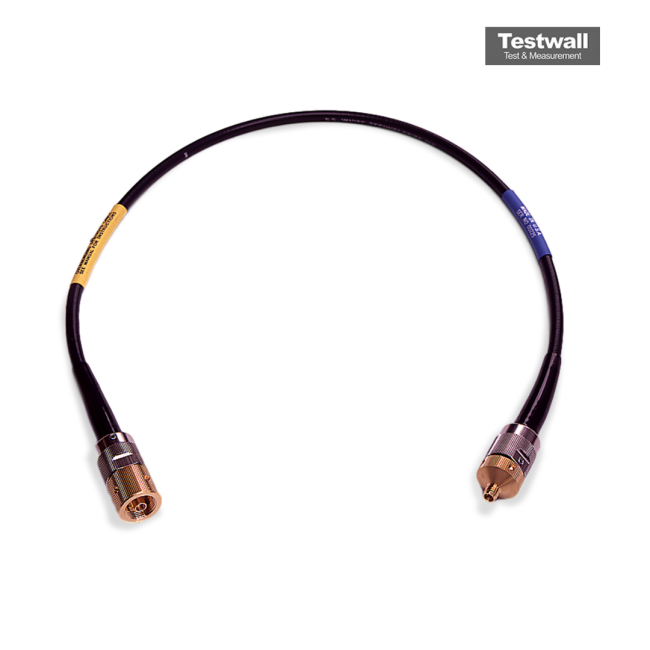

The Keysight (Agilent) 85133C is a semi-rigid cable measuring 81 cm (32 in) with a 2.4 mm female to PSC-2.4 mm female configuration. It supports a frequency range from DC to 50 GHz, offering a return loss of 15 dB or better. Insertion loss follows the formula 0.84 * sqrt(f) + 0.3 for the test port connector, and reaches up to 5.6 dB at maximum frequency for the device connector. Phase stability under a 90° bend is less than 0.06 dB and 0.18*f degrees, where f is frequency in GHz.
This cable is ideal for high-frequency applications requiring exceptional stability and performance, especially in network analyzer test setups. It features a special rugged female connector optimized for analyzer test ports.
Testwall can supply the used Keysight (Agilent) 85133C, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 85133C.
