Keysight (Agilent) 85134F
| Attribute | Value |
|---|---|
| Frequency Range | DC to 50 GHz |
| Connector Type | 3.5 mm to 2.4 mm Adapter |
| Gender | Male to Female |
| Impedance | 50 Ohm |
| VSWR | 1.25:1 maximum |
| Insertion Loss | 0.3 dB maximum |
| Operating Temperature | 0°C to +55°C |
| Body Material | Stainless Steel |
| Maximum Input Power | 0.5 W average |
| Torque Specification | 8 in-lb (0.9 N-m) |
| Model | 85134F |
|---|

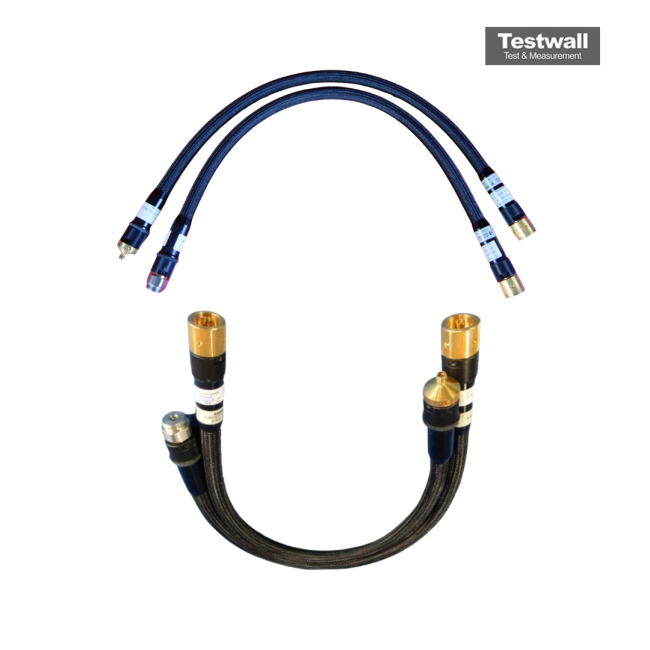

The Keysight (Agilent) 85134F is a 62.9 cm flexible cable set featuring a 2.4 mm female to PSC-3.5 mm female connector and a 2.4 mm female to 3.5 mm male connector. It supports frequencies from DC to 26.5 GHz, with a return loss of ≥16 dB. Insertion loss for the test port connector is 0.31 * √f + 0.2, and 1.8 dB max for the device connector. Phase stability with a 90° bend is <0.12 dB, and phase deviation is 0.13*f + 0.5°.
This rugged cable is optimized for network analyzer test ports, ensuring reliable high-frequency performance and accurate measurements in demanding lab or field applications.
Testwall can supply the used Keysight (Agilent) 85134F, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 85134F.
