Keysight (Agilent)

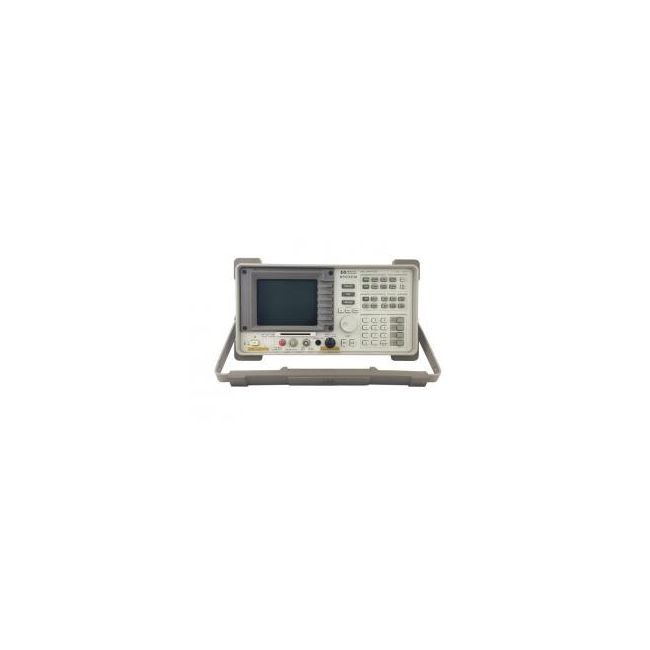

Keysight (Agilent) 8593EM
EMC Analyser, 9 kHz - 22 GHz
9 kHz to 22 GHz Frequency Range
CRT Display Display Type
-115 dBm to +30 dBm Amplitude Range
1 kHz to 3 MHz Resolution Bandwidth
1 Hz to 3 MHz Video Bandwidth
| Attribute | Value |
|---|---|
| Frequency Range | 9 kHz to 22 GHz |
| Display Type | CRT Display |
| Amplitude Range | -115 dBm to +30 dBm |
| Resolution Bandwidth | 1 kHz to 3 MHz |
| Video Bandwidth | 1 Hz to 3 MHz |
| Phase Noise | -98 dBc/Hz at 10 kHz offset |
| Input Impedance | 50 Ohms |
| Dynamic Range | 70 dB |
| DANL (Displayed Average Noise Level) | -115 dBm at 1 GHz |
| Power Requirements | 100/120/220/240 VAC, 48-66 Hz |
Keysight (Agilent) 8593EM Options:
- 8593EM - 003 - Memory card reader
- 8593EM - 004 - Precision frequency reference
- 8593EM - 009 - Local oscillator and sweep + tune outputs (rear panel)
- 8593EM - 010 - Built-in tracking generator, 50 Ohm (9 kHz–2.9 GHz)
- 8593EM - 015 - Protective soft tan carrying/operating case
- 8593EM - 016 - Protective soft yellow operating/carrying case
- 8593EM - 026 - Frequency extension to 26.5 GHz (APC 3.5 mm connector)
- 8593EM - 027 - Frequency extension to 26.5 GHz (type-N connector)
- 8593EM - 040 - Front panel protective cover w/CRT viewing hood
- 8593EM - 041 - GPIB interface and parallel printer interface
- 8593EM - 042 - Protective soft carrying case/backpack
- 8593EM - 043 - RS-232 interface and parallel printer interface
- 8593EM - 050 - Improved amplitude accuracy for NADC-TDMA/PCS bands
- 8593EM - 051 - Improved amplitude accuracy for PDC bands
- 8593EM - 052 - Improved amplitude accuracy for PHS band
- 8593EM - 053 - Improved amplitude accuracy for CDMA/PCS bands
- 8593EM - 0B0 - Delete manual set
- 8593EM - 101 - Fast time-domain sweeps and Analog + display
- 8593EM - 102 - AM/FM demod. with speaker and TV sync. trigger
- 8593EM - 105 - Time-gated spectrum analysis
- 8593EM - 107 - TV receiver video tester
- 8593EM - 110 - CT2 demodulator
- 8593EM - 111 - Group delay w/compatible tracking generator
- 8593EM - 112 - DECT demodulator
- 8593EM - 119 - Noise figure
- 8593EM - 130 - Narrow resolution bandwidths (30 Hz, 100 Hz, 300 Hz and 200 Hz EMI)
- 8593EM - 140 - Narrow resolution bandwidths/precision frequency reference (Opt 004 and 130)
- 8593EM - 151 - DSP, fast ADC, and digital demodulator
- 8593EM - 160 - PDC, PHS, NADC, and CDMA firmware for Option 151
- 8593EM - 163 - GSM900/DCS1800 firmware for Option 151
- 8593EM - 180 - TV picture on screen (NTSC, PAL, and SECAM)
- 8593EM - 301 - TV sync. trigger capability, fast time domain sweeps, AM/FM demodulator, and Analog + display (Option 101 and 102)
- 8593EM - 701 - Delete TV sync. trigger capability, fast time domain sweeps, AM/FM demodulator and Analog + display (Options 101 and 102)
- 8593EM - 711 - 50/75 Ohm matching pad with 100V DC block
- 8593EM - 908 - Rack mount kit without handles
- 8593EM - 909 - Rack mount kit with handles
- 8593EM - 910 - Additional user's guide, calibration guide, and quick reference guide
- 8593EM - 915 - Component level information and service guide
- 8593EM - AB_ - Quick reference guide in local languages
- 8593EM - E04 - DRTS compatibility
- 8593EM - 0Q8 - Factory service training
- 8593EM - UK6 - Commercial calibration certificate with test data
- 8593EM - W30 - Two additional years return-to-Agilent service
- 8593EM - W32 - Two additional years return-to-Agilent calibration
- 8593EM - W34 - 3 year standards compliant calibration service
- 8593EM - W50 - Four additional years return-to-Agilent service
- 8593EM - W52 - Four additional years return-to-Agilent calibration
- 8593EM - W54 - 5 year standards compliant calibration service
- 8593EM - B70 - BenchLink spectrum analyzer
- 8593EM - BD0 - Code division multiple access
- 8593EM - BD1 - Global system for mobile communication
- 8593EM - BD2 - North American digital cellular system
- 8593EM - BD3 - Pacific digital cellular system
- 8593EM - BD4 - Personal handyphone system
- 8593EM - R01 - Fast time-domain sweeps and analog + display
- 8593EM - R02 - AM/FM demodulator with speaker and TV sync trigger circuitry
- 8593EM - R03 - Memory card reader
- 8593EM - R04 - Precision frequency reference
- 8593EM - R05 - CT2 demodulator
- 8593EM - R06 - DECT demodulator
- 8593EM - R07/R17 - TV receiver/video tester
- 8593EM - R15 - Time-gated spectrum analysis
- 8593EM - R16 - Protective soft yellow operating/carrying case
- 8593EM - R19 - Noise figure
- 8593EM - R21 - GPIB interface
- 8593EM - R23 - RS-232 interface
- 8593EM - R24 - Parallel printer interface
- 8593EM - R25 - Protective soft tan operating/carrying case
- 8593EM - R30 - Narrow resolution bandwidths
- 8593EM - R41 - GPIB interface and parallel printer interface
- 8593EM - R43 - RS-232 interface and parallel printer interface
- 8593EM - R50 - Improved amplitude accuracy for NADC-TDMA/PCS bands
- 8593EM - R51 - Improved amplitude accuracy for PDC bands
- 8593EM - R52 - Improved amplitude accuracy for PHS band
- 8593EM - R53 - Improved amplitude accuracy for CDMA/PCS cellular bands
- 8593EM - R60 - PDC, PHS, NADC, and CDMA firmware for Option 151
- 8593EM - R63 - GSM900/DCS1800 firmware for Option 151
- 8593EM - R70 - PDC/PHS/NADC/CDMA FW+Opt 151 retro. kit
- 8593EM - R73 - DSP, fast ADC, and digital demodulator with GSM900/DCS1800 firmware
- 8593EM - R80 - TV picture on screen (NTSC, PAL, and SECAM)
- 8593EM - 11768A - Group delay retrofit kit
- 8593EM - 11946A - Quasi-peak detector and AM/FM demod retrofit kit
| Model | 8593EM |
|---|
The Keysight (Agilent) 8593EM is an automated EMC precompliance analyzer with a frequency range up to 22 GHz, designed to measure radiated and conducted EMI emissions on devices with clock frequencies up to 4.4 GHz. It offers EMI and spectrum analysis modes and features fully integrated automation.
Ideal for precompliance testing, it includes setup keys for CISPR bands, amplitude correction, limit-line comparisons, and automated signal measurement and reporting up to 239 signals.
Testwall can supply the used Keysight (Agilent) 8593EM, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 8593EM.
