Keysight (Agilent) 86100B
| Attribute | Value |
|---|---|
| Bandwidth | Up to 80 GHz (dependent on installed plug-in modules) |
| Timebase Range | 10 ps/div to 2 s/div |
| Vertical Resolution | 8 bits (12 bits in high-resolution mode) |
| Number of Channels | Up to 4 channels (via plug-in modules) |
| Trigger Input Frequency Range | 50 MHz to 12.5 GHz |
| Display | 10.4-inch color TFT LCD display |
| Waveform Memory | Up to 4 MB per channel |
| Interface/Connectivity | GPIB, RS-232, Parallel (IEEE 488.2 compliant) |
| Operating Temperature | 0°C to 55°C (32°F to 131°F) |
| Power Requirements | 100–240 VAC, 50/60 Hz, 450 W maximum |
Keysight Technologies 86100B Options:
- 86100B - 001 - 12 GHz trigger bandwidth
- 86100B - AX4 - Rack mount flange kit
- 86100B - AXE - Rack mount flange kit with handles
- 86100B - UK6 - Commercial cal certificate with test data
- 86107A - 010 - Precision timebase reference module with 2.5 and 10 GHz clock input capability
- 86107A - 020 - Precision timebase reference module with 10 and 20 GHz clock input capability
- 86107A - 040 - Precision timebase reference module with 10, 20 and 40 GHz clock input capability
| Model | 86100B |
|---|

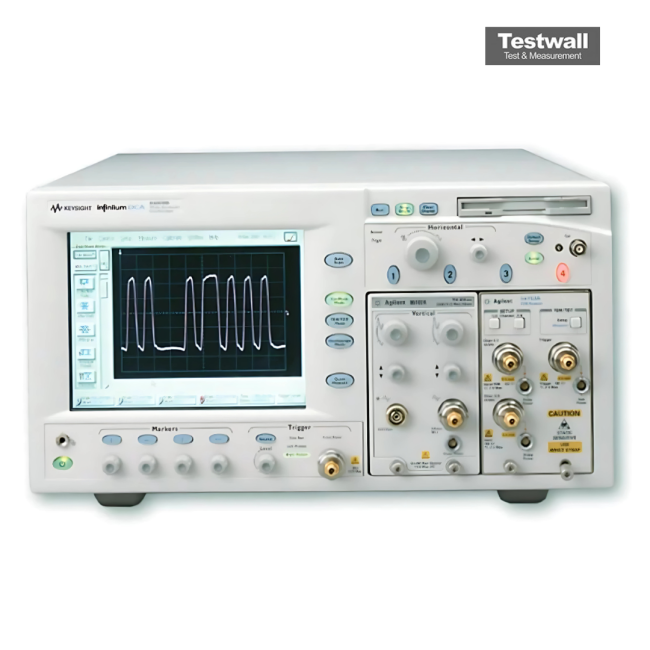

The Keysight (Agilent) 86100B Infiniium DCA is a high-speed oscilloscope, digital communications analyzer, and time-domain reflectometer in one unit. It supports bandwidths up to 65 GHz optical and 80 GHz electrical, handles data rates from 100 Mb/s to beyond 40 Gb/s, and includes integrated optical and electrical channels with a Windows® interface.
Engineers can perform complex compliance measurements like eye analysis in a single step using built-in tests, streamlining workflow and increasing productivity.
Testwall can supply the used Keysight (Agilent) 86100B Infiniium DCA, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 86100B Infiniium DCA.
