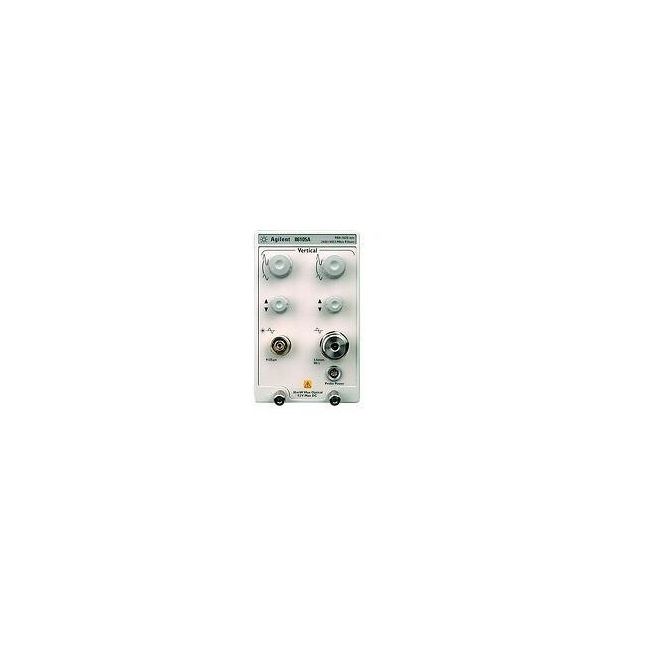

Keysight (Agilent) 86105A-202
Optical & Electrical Plug In 1000-1600nm
1100 nm to 1600 nm Optical Wavelength Range
20 GHz Electrical Bandwidth
15 GHz Optical Bandwidth
25 ps Rise Time (Optical)
Single-Mode FC/PC Optical Connector Input Connector Type
| Attribute | Value |
|---|---|
| Optical Wavelength Range | 1100 nm to 1600 nm |
| Electrical Bandwidth | 20 GHz |
| Optical Bandwidth | 15 GHz |
| Rise Time (Optical) | 25 ps |
| Input Connector Type | Single-Mode FC/PC Optical Connector |
| Module Compatibility | Keysight 86100 Series Sampling Oscilloscopes |
| Optical Input Power Range | -20 dBm to +3 dBm |
| Electrical Input Impedance | 50 Ohms |
| Operating Temperature Range | 0°C to 55°C |
| Option 202 Description | Single-Mode / Multi-Mode Optical Input with Enhanced Sensitivity |
| Model | 86105A-202 |
|---|
The Keysight (Agilent) 86105A is a dual-channel plug-in module designed for the 86100A Infiniium DCA Oscilloscope Mainframe, offering both 20 GHz optical and 20 GHz electrical measurement capabilities. Each channel features switchable bandwidth settings—12.4 GHz for low-noise operation and 20 GHz for high-speed fidelity. The optical input includes a calibrated SDH/SONET reference receiver with switchable filters for compliance at 155, 622, 2488, and 9953 Mb/s.
The integrated optical channel, calibrated at 1310 nm and 1550 nm, eliminates distortion from external cabling and allows direct display of waveform amplitude in optical power units. This enables accurate signal average power measurements and real-time waveform characterization. Multiple connector types and reference filter options allow flexible system configuration.
Testwall can supply the used Keysight (Agilent) 86105A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 86105A.
