Keysight (Agilent) 86105C
| Attribute | Value |
|---|---|
| Optical Wavelength Range | 750 nm to 1650 nm |
| Optical Bandwidth | 20 GHz |
| Electrical Bandwidth | 20 GHz |
| Rise Time (Optical) | 17.5 ps |
| Input Connector Type | Single-mode and multimode fiber (FC/PC) |
| Electrical Channel Input Impedance | 50 Ohms |
| Maximum Input Optical Power | +3 dBm average |
| Compatible Mainframe | Keysight 86100 Series Digital Communications Analyzer (DCA) |
| Module Type | Dual-channel optical/electrical plug-in module |
| Optical Sensitivity | -18 dBm average |
Keysight Technologies 86105C Options:
- 86105C - 100 - Base Series with any 4 low-rate filters (choose from options 110–190)
- 86105C - 110 - 155 Mb/s OC-3 filter
- 86105C - 120 - 622 Mb/s OC-12 filter
- 86105C - 130 - 1063 Mb/s Fibre Channel filter
- 86105C - 140 - 1250 Mb/s GbE filter
- 86105C - 150 - 2125 Mb/s 2x Fibre Channel filter
- 86105C - 160 - 2488 Mb/s OC-48 / 2500 Mb/s 2x GbE, InfiniBand filter
- 86105C - 170 - 2666 Mb/s OC-48 (FEC) filter
- 86105C - 180 - 3125 Mb/s 10 GbE LX-4 filter
- 86105C - 190 - 4250 Mb/s 4x Fibre Channel filter
- 86105C - 200 - High-rate option including 9.953 Gb/s OC-192, 10.3125 Gb/s 10 GbE, 10.51875 Gb/s 10 G Fibre Channel, 10.664 Gb/s OC-192 (FEC), 10.709 Gb/s OC-192 (ITU-T G.709), 11.100 Gb/s 10 GbE FEC, and 11.300 Gb/s 10 G Fibre Channel filters
- 86105C - 300 - Combined low-rate (any 4 filters, options 110–190) and high-rate filters including 9.953 Gb/s OC-192, 10.3125 Gb/s 10 GbE, 10.51875 Gb/s 10 G Fibre Channel, 10.664 Gb/s OC-192 (FEC), 10.709 Gb/s OC-192 (ITU-T G.709), 11.100 Gb/s 10 GbE FEC, and 11.300 Gb/s 10 G Fibre Channel filters
| Model | 86105C |
|---|

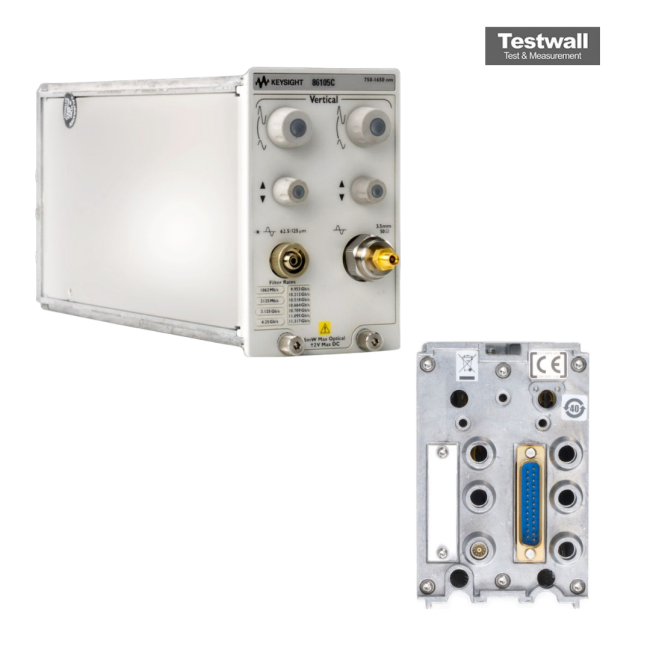

The Keysight (Agilent) 86105C Infiniium DCA-J plug-in module features a 9 GHz amplified optical channel with a wavelength range of 750–1600 nm, supporting 9/125 to 62.5/125 fibers. It includes a 20 GHz electrical channel with a 3.5 mm male input, and provides RMS noise as low as 0.25 mV and maximum input of ±2 Vdc. Options include low data rate and multi 9G filters.
Compatible with 86100A/B/C and 86100D DCA mainframes, it enables compliance testing across SONET/SDH and enterprise networks up to 11.3 Gb/s with high signal fidelity.
Testwall can supply the used Keysight (Agilent) 86105C, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 86105C.
