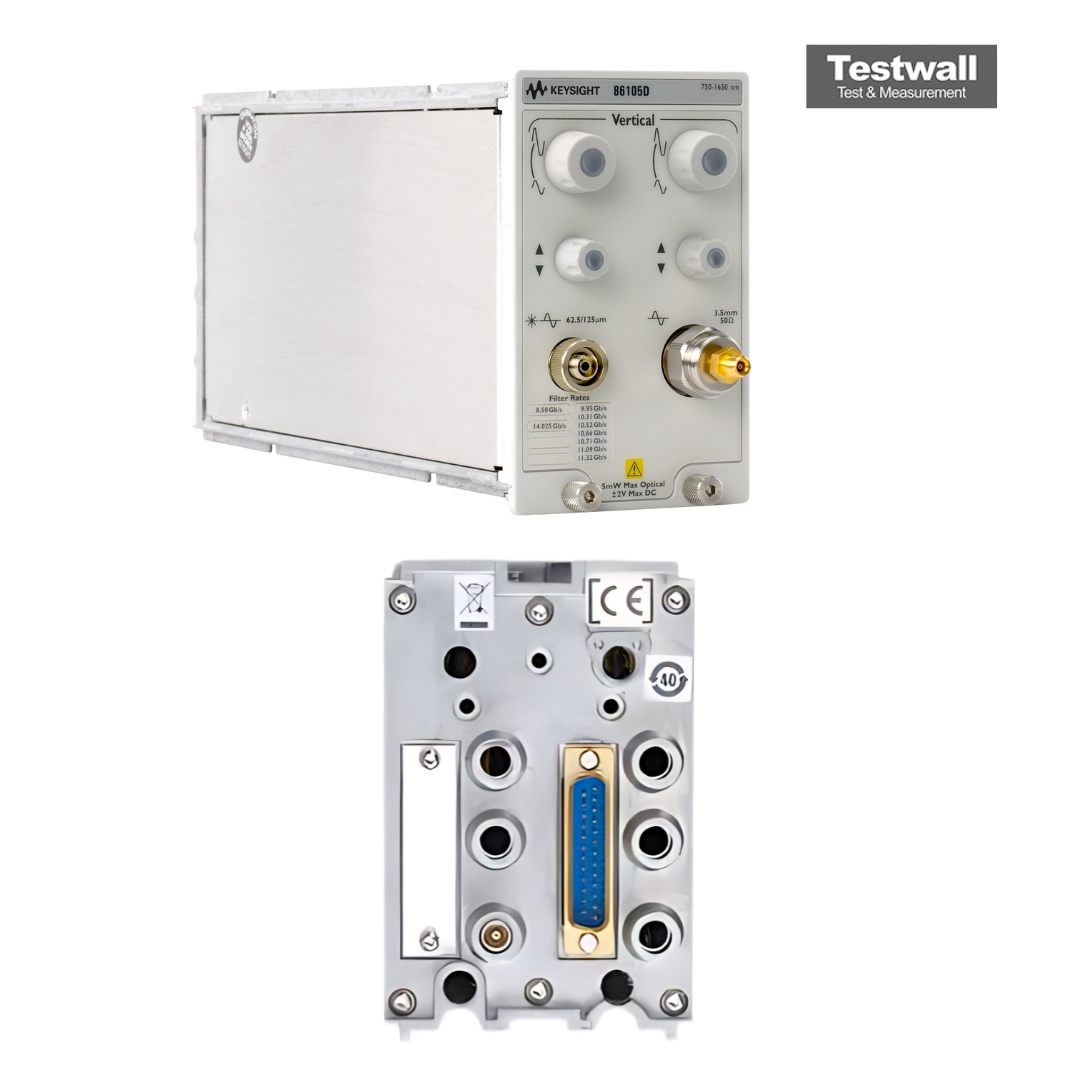

Keysight (Agilent) 86105D
| Attribute | Value |
|---|---|
| Optical Wavelength Range | 750 nm to 1650 nm |
| Optical Bandwidth | 30 GHz (electrical equivalent) |
| Electrical Bandwidth | 20 GHz |
| Rise Time (Optical) | Less than 15 ps (10% to 90%) |
| Input Connector Type | FC/PC optical connector and 2.92 mm (K) electrical connector |
| Compatible Mainframes | Keysight 86100A, 86100B, 86100C, 86100D Digital Communications Analyzer (DCA) |
| Module Type | Dual-channel optical and electrical plug-in module |
| Optical Input Power Range | -20 dBm to +3 dBm average input power |
| Electrical Input Voltage | ±2 V peak input range |
| Operating Temperature Range | 0°C to 55°C |
Keysight (Agilent) 86105D Options:
- 86105D - Standard - 20 GHz optical channel; single-mode and multimode (750-1650 nm); filters for 8.5, 9.953, 10.3125, 10.519, 10.664, 10.709, 11.096, 11.317, 14.025 Gb/s; 35 GHz electrical channel
| Model | 86105D |
|---|
The Keysight (Agilent) 86105D is a versatile optical and electrical module supporting 20 GHz and 34 GHz optical channels, ideal for short and long wavelength testing across 750-1650 nm. It includes 25/35 GHz electrical bandwidths with low rms noise levels of 250 µV and 450 µV, and a maximum input signal of ±2 Vdc. It supports a wide range of data rates from 8.5 Gb/s to 14.025 Gb/s with switchable reference receivers and is compatible with 86100C/D DCA mainframes.
Optimized for research, development, and high-volume manufacturing, the Keysight 86105D offers unamplified high-fidelity measurements for 62.5/125 and 9/125 fiber applications.
