Keysight (Agilent)

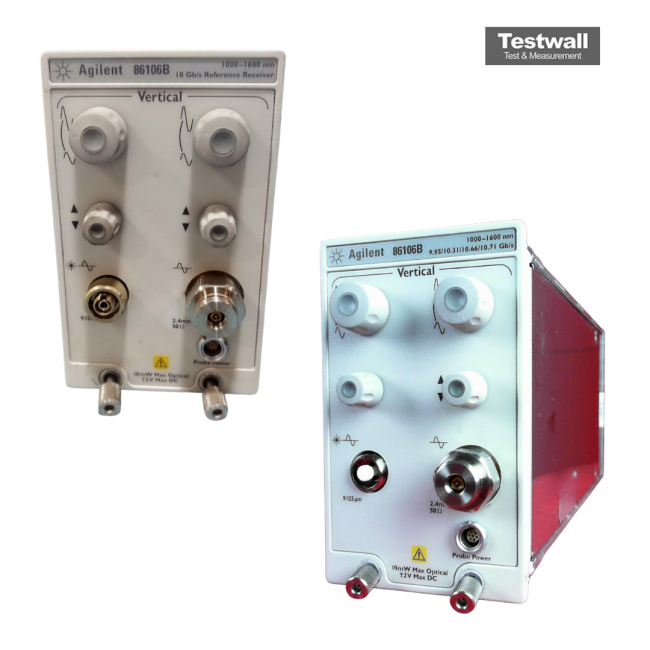

Keysight (Agilent) 86106B
Electrical Plug-In Module
750 nm to 1650 nm Wavelength Range
30 GHz (electrical) Optical Bandwidth
20 GHz Electrical Bandwidth
Less than 17.5 ps Rise Time
Single-mode and multimode fiber compatible Optical Input Connector
| Attribute | Value |
|---|---|
| Wavelength Range | 750 nm to 1650 nm |
| Optical Bandwidth | 30 GHz (electrical) |
| Electrical Bandwidth | 20 GHz |
| Rise Time | Less than 17.5 ps |
| Optical Input Connector | Single-mode and multimode fiber compatible |
| Module Type | Dual-channel optical/electrical plug-in module |
| Compatible Mainframe | Keysight 86100 Series Digital Communications Analyzer (DCA) |
| Sensitivity | -18 dBm average optical power (typical) |
| Maximum Input Power | +10 dBm average optical power |
| Operating Temperature | 0°C to 55°C (32°F to 131°F) |
Keysight Technologies 86106B Options:
- 86106B - Standard - OC-192/STM-64 (9.953 Gb/s) filter included
- 86106B - Option 410 - OC-192/STM-64 (9.953 Gb/s), 10 Gigabit Ethernet (10.3125 Gb/s), OC-192/STM-64 FEC (10.664 Gb/s, 10.709 Gb/s)
- 86106B - Option 011 - Diamond HMS-10 Connector Interface
- 86106B - Option 012 - FC/PC Connector Adapter
- 86106B - Option 013 - DIN Connector Adapter
- 86106B - Option 014 - ST Connector Adapter
- 86106B - Option 017 - SC Connector Adapter
- 86106B - Option W30 - 3 years of customer return repair service
- 86106B - Option W32 - 3 years of customer return calibration service
- 86106B - Option W50 - 5 years of customer return repair service
- 86106B - Option W52 - 5 years of customer return calibration service
| Model | 86106B |
|---|
The Keysight (Agilent) 86106B features a calibrated optical channel with a built-in OC-192/STM-64 filter, ideal for standards-based transmitter compliance testing. When bypassed, it provides 28 GHz optical bandwidth for detailed laser characterization.
It includes a 40 GHz electrical channel for high-bandwidth waveform measurements, with enhanced frequency-response to reduce pulse distortion.
Testwall can supply the used Keysight (Agilent) 86106B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 86106B.
