Keysight (Agilent) 86116A
| Attribute | Value |
|---|---|
| Wavelength Range | 1250 nm to 1650 nm |
| Electrical Bandwidth | 40 GHz |
| Number of Optical Input Channels | 2 |
| Optical Input Connector Type | Single-mode FC/PC |
| Compatible Instrument | Keysight 86100 Series Digital Communications Analyzer (DCA) |
| Maximum Input Power | +10 dBm average |
| Optical Sensitivity (Typical) | -14 dBm average |
| Data Rate Support | Up to 43 Gb/s (OC-768/STM-256) |
| Module Form Factor | Plug-in module for 86100 mainframe |
| Rise/Fall Time (Typical) | Less than 9.3 ps (10% to 90%) |
| Model | 86116A |
|---|

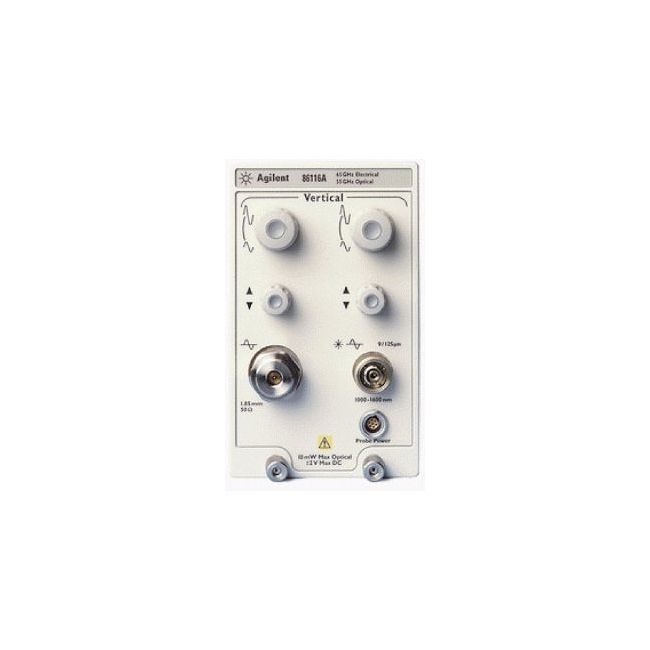

The Keysight (Agilent) 86116A is a precision dual-channel module featuring a 53 GHz optical input for 9/125 µm fibers and a 63 GHz electrical input via 1.85 mm male connector. It supports wavelengths from 1000 to 1600 nm, delivering excellent fidelity for high-speed optical and electrical waveform analysis.
This module is fully compatible with the Keysight 86100A/B/C Infiniium DCA/DCA-J mainframes, making it ideal for advanced telecom and datacom system evaluations and diagnostics.
Testwall can supply the used Keysight (Agilent) 86116A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 86116A.
