Keysight (Agilent) 86118A
| Attribute | Value |
|---|---|
| Bandwidth | 70 GHz |
| Number of Channels | 2 (Dual Channel) |
| Rise Time | 5 ps (typical) |
| Optical Input Wavelength Range | 750 nm to 1650 nm |
| Connector Type | Single-mode and multimode fiber compatible |
| Electrical Output | 2.4 mm coaxial connector |
| Conversion Gain | Approximately 300 V/W (typical) |
| Compatible Instruments | Keysight 86100 series Digital Communications Analyzer (DCA) |
| Maximum Input Power | +3 dBm average optical power |
| Module Form Factor | Plug-in module for Keysight 86100 mainframe |
| Model | 86118A |
|---|

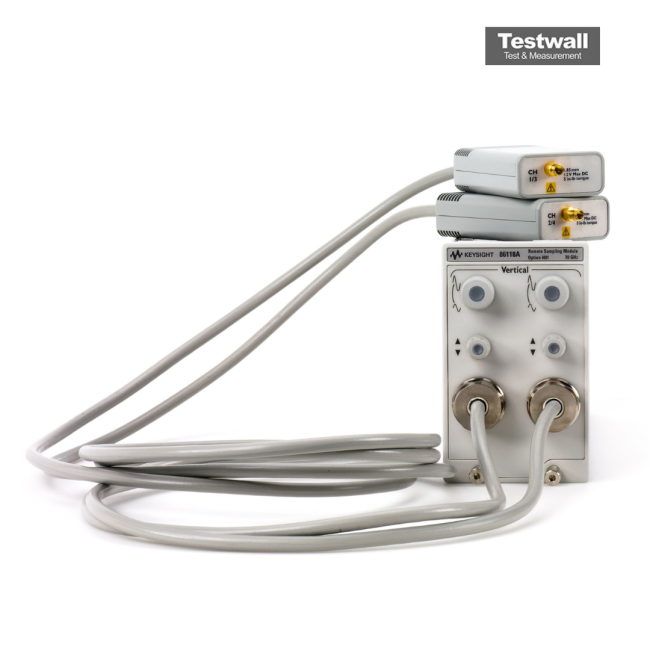

The Keysight (Agilent) 86118A offers over 70 GHz electrical bandwidth, ensuring high-speed signal analysis with minimal attenuation and preserved edge speeds. Its compact remote sampling heads with 1.85 mm (f) connectors deliver high precision and flexibility with a 2-meter cable length. It provides 0.4 mV rms noise (30 GHz BW) and supports ±2 Vdc input signals.
Perfect for differential signal measurement, option 86118A-H01 ensures < 65 ps channel skew and alignment within 150 ps. Compatible with 86100A/B/C and D Infiniium DCA Mainframes.
Testwall can supply the used Keysight (Agilent) 86118A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 86118A.
