Keysight (Agilent)
Keysight (Agilent) 86601A
1270 nm to 1650 nm Wavelength Range
-10 dBm to +10 dBm Output Power Range
0.1 Hz to 200 kHz Modulation Frequency Range
FC/PC Connector Type
Single-mode Fiber Type
| Attribute | Value |
|---|---|
| Wavelength Range | 1270 nm to 1650 nm |
| Output Power Range | -10 dBm to +10 dBm |
| Modulation Frequency Range | 0.1 Hz to 200 kHz |
| Connector Type | FC/PC |
| Fiber Type | Single-mode |
| Power Stability | ±0.005 dB over 1 hour |
| Interface | GPIB (IEEE-488) |
| Operating Temperature | 0°C to 55°C |
| Power Supply | 100-240 VAC, 50/60 Hz |
| Dimensions (W x H x D) | 212.6 mm x 88.5 mm x 348.3 mm |
| Model | 86601A |
|---|

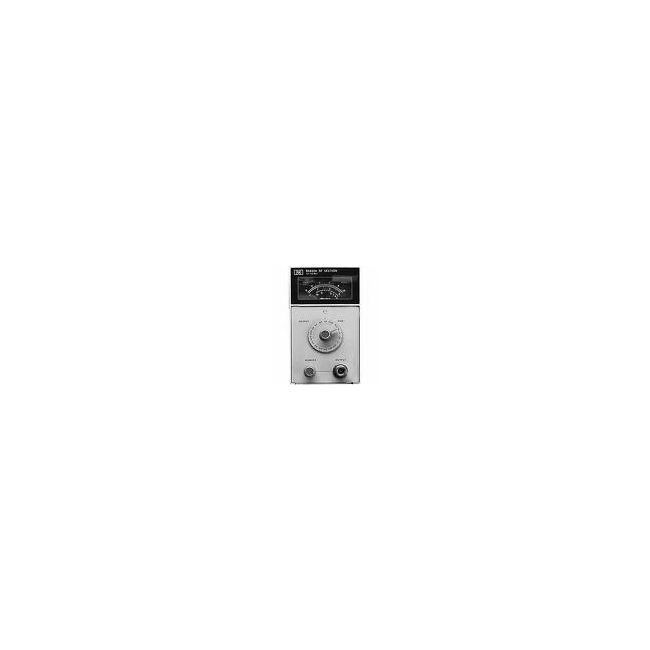

The Keysight (Agilent) 86601A is an RF output plug-in delivering 0.01 to 109.999999 MHz, compatible with the 8660 mainframes. It supports output selection in 1 Hz or 100 Hz increments depending on the system configuration.
It features attenuation from -146 dBm to +13 dBm, phase noise >50 dB, and spurious signals <-80 dB. Supports AM and FM modulation with the 86632A module.
Testwall can supply the used Keysight (Agilent) 86601A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 86601A.
