Keysight (Agilent) 8683A
| Attribute | Value |
|---|---|
| Frequency Range | 3.0 GHz to 26.5 GHz |
| Output Power Range | -110 dBm to +17 dBm |
| Frequency Resolution | 1 Hz |
| SSB Phase Noise | -80 dBc/Hz at 10 kHz offset (typical) |
| Frequency Switching Speed | Less than 10 ms |
| Harmonic Suppression | -30 dBc (typical) |
| Output Connector | Type-N (female), 50 Ohm |
| Modulation Capabilities | AM, FM, Phase, and Pulse Modulation |
| Power Supply | 100–240 VAC, 47–63 Hz |
| Operating Temperature | 0°C to 55°C |
| Model | 8683A |
|---|

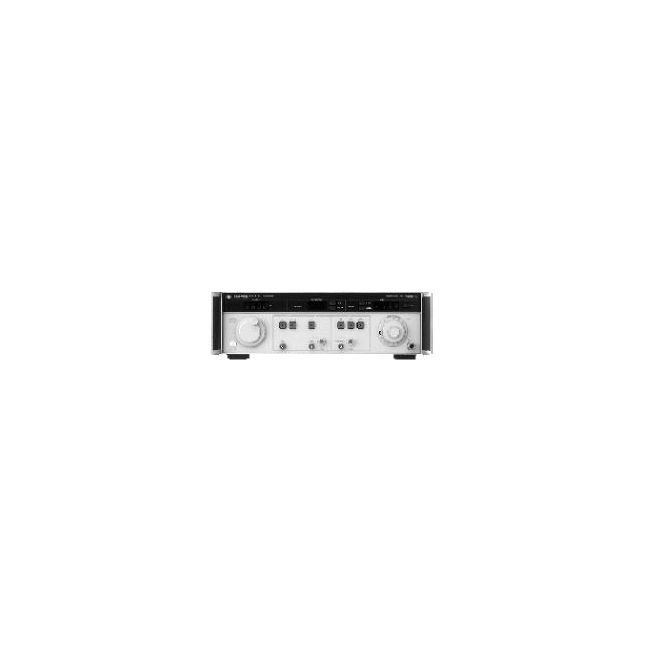

The Keysight (Agilent) 8683A is a cavity-tuned, microprocessor-enhanced, solid-state signal generator with a frequency range of 2.3 to 6.5 GHz. It delivers output power from +10 dBm to approximately -130 dBm, supports AM, FM, and pulse modulation with internal and external control, and provides a resolution of 5 MHz. Its intuitive front panel, seven-segment LED displays, and advanced modulation conflict detection system ensure reliable operation.
Ideal for high-precision microwave signal generation, the 8683A supports modulation rates up to 10 kHz and operates in environments from 0°C to 55°C. Conforms to MIL-STD-461A and IEC 348 safety standards.
Testwall can supply the used Keysight (Agilent) 8683A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 8683A.
