Keysight (Agilent) 87106A
| Attribute | Value |
|---|---|
| Frequency Range | DC to 26.5 GHz |
| Configuration | 6x2 (6 common ports, 2 switch positions) |
| Insertion Loss | 3.5 dB typical at 26.5 GHz |
| Isolation | 60 dB minimum |
| VSWR | 1.8:1 maximum at 26.5 GHz |
| Connector Type | SMA (female) |
| Switching Speed | 15 ms maximum |
| Control Interface | TTL logic control via DB-15 connector |
| Power Requirements | +24 VDC, 500 mA |
| Operating Temperature | 0°C to 55°C |
| Model | 87106A |
|---|

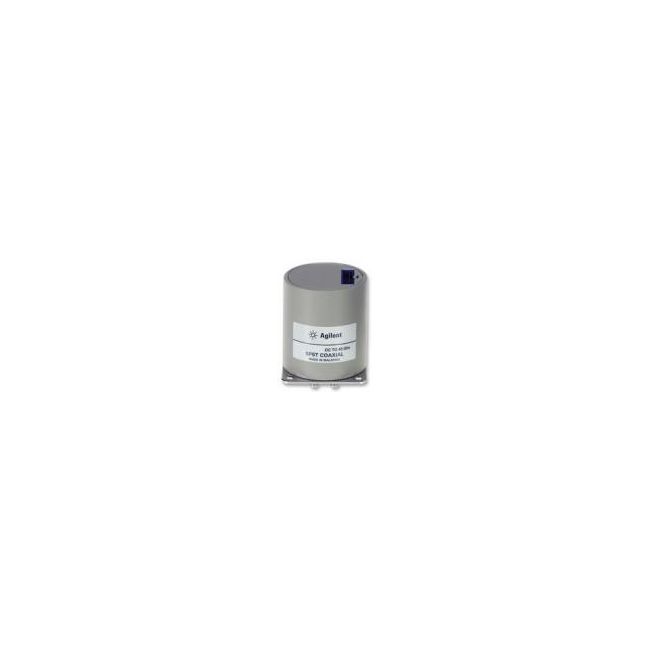

The Keysight (Agilent) 87106A is a terminated SP6T multiport switch with magnetic latching, designed for high-performance RF systems. It guarantees excellent repeatability of 0.03 dB for up to 5 million cycles, features low insertion loss, and ensures superior isolation over 90 dB up to 26.5 GHz. Engineered for longevity, it has an operating life of 10 million cycles and supports TTL/5V CMOS compatibility.
This switch is ideal for automated testing, signal routing, and RF monitoring applications where high precision and low maintenance are required. Optical indicators and interrupts enhance system integration.
Testwall can supply the used Keysight (Agilent) 87106A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 87106A.
