Keysight (Agilent) 87106B
| Attribute | Value |
|---|---|
| Frequency Range | DC to 26.5 GHz |
| Configuration | 6x1 (SP6T) Coaxial Switch |
| Insertion Loss | ≤ 1.8 dB (DC to 26.5 GHz) |
| VSWR | ≤ 1.9:1 (DC to 26.5 GHz) |
| Isolation | ≥ 70 dB (DC to 26.5 GHz) |
| Switching Speed | ≤ 20 ms (typical) |
| Power Handling | 1 W average, 100 W peak |
| Connector Type | SMA (Female) |
| Control Voltage | +24 VDC |
| Operating Temperature | 0°C to +55°C |
| Model | 87106B |
|---|

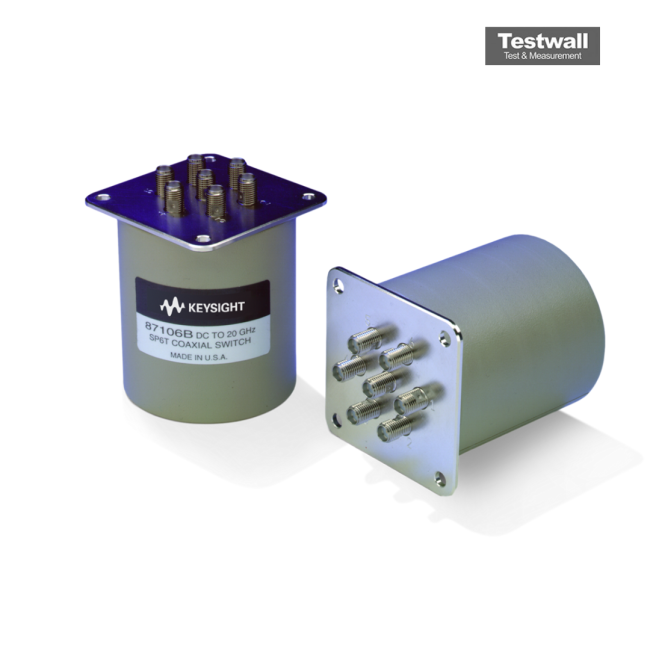

The Keysight (Agilent) 87106B is a terminated SP6T multiport RF switch designed for advanced test systems, featuring magnetic latching and opto-electronic indicators. It guarantees excellent isolation over 90 dB up to 26.5 GHz, low insertion loss, and outstanding repeatability of 0.03 dB across 5 million cycles, ensuring precise, long-term signal switching in automated environments.
Ideal for automated test setups, signal routing, and monitoring, the 87106B’s high reliability reduces calibration needs and boosts system uptime, thanks to its 10 million cycle operating life and TTL/5V CMOS compatibility.
Testwall can supply the used Keysight (Agilent) 87106B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 87106B.
