Keysight (Agilent)

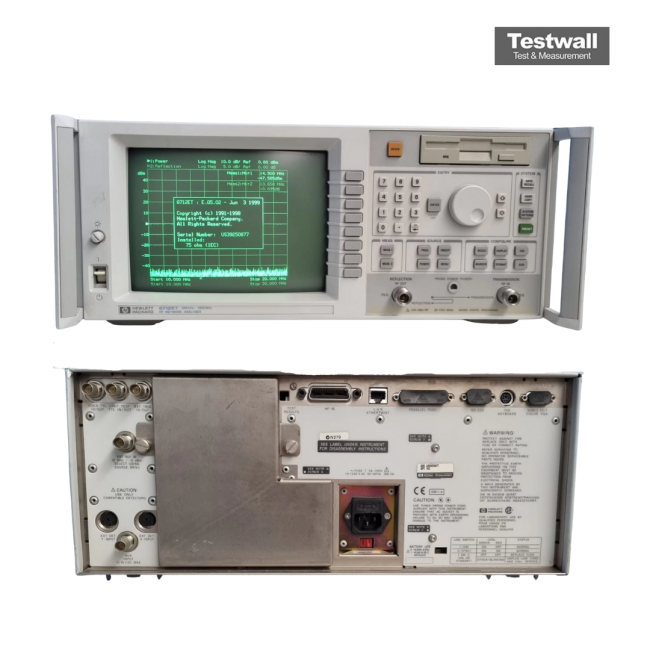

Keysight (Agilent) 8712ET
300KHz-1.3GHz Vector Network Analyser
300 kHz to 1.3 GHz Frequency Range
2 Number of Ports
Transmission (S21, S12) and Reflection (S11, S22) Measurement Parameters
100 dB Dynamic Range
-60 dBm to +10 dBm Output Power Range
| Attribute | Value |
|---|---|
| Frequency Range | 300 kHz to 1.3 GHz |
| Number of Ports | 2 |
| Measurement Parameters | Transmission (S21, S12) and Reflection (S11, S22) |
| Dynamic Range | 100 dB |
| Output Power Range | -60 dBm to +10 dBm |
| Impedance | 50 Ohm |
| Display | 10.4-inch color LCD |
| Connector Type | Type-N (50 Ohm) |
| Power Requirements | 100–240 VAC, 50/60 Hz |
| Dimensions (W x H x D) | 425 mm x 177 mm x 498 mm (16.7 in x 6.97 in x 19.6 in) |
Keysight Technologies 8712ET Options:
- 8712ET - 1EC - Provides 75 ohm system impedance
- 8712ET - 1E1 - Adds a built-in 60 dB step attenuator to extend the output power range to –60 dBm
- 8712ET - 100 - Fault location and structural return loss capability
- 8712ET - 101 - Transport case combined with fault location and structural return loss (Option 100) for field measurements
| Model | 8712ET |
|---|
The Keysight (Agilent) 8712ET RF Network Analyzer covers 300 kHz to 1.3 GHz and features an integrated transmission/reflection (T/R) test set for comprehensive magnitude and phase analysis. It offers 100 dB dynamic range, real-time sweep speeds up to 40 ms/sweep, and supports narrowband and broadband measurements. With two independent channels, users can simultaneously display parameters like transmission and reflection in multiple formats including SWR, delay, and Smith charts. Built-in vector-error correction ensures precise measurement accuracy, while LAN connectivity, 1-Hz source resolution, and IBASIC automation enhance system integration.
Compatible with standard multi-port switching test sets and optional upgrades like fault location and 75-ohm impedance.
Testwall can supply the used Keysight (Agilent) 8712ET, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 8712ET.
