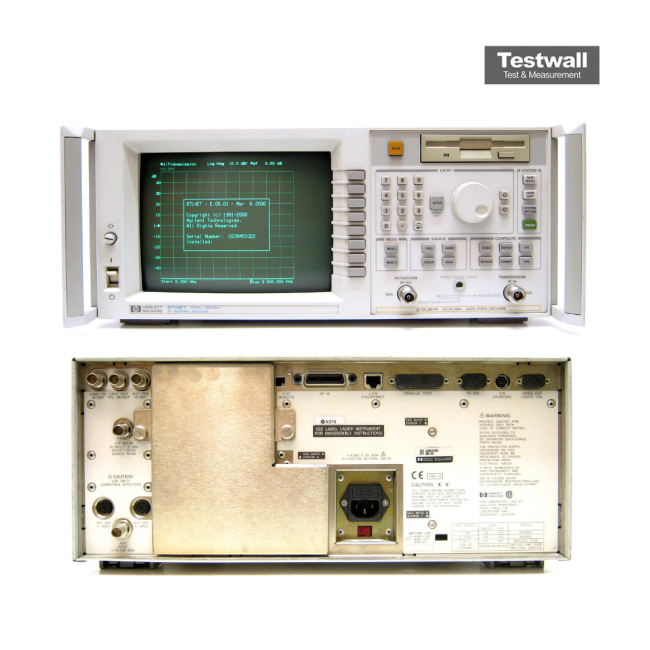

Keysight (Agilent) 8714ET
3GHz Vector Network Analyser with Transmission/Reflection Test Set
300 kHz to 3 GHz Frequency Range
2-Port Number of Ports
S11, S21 (Transmission and Reflection) Measurement Parameters
100 dB Dynamic Range
-60 dBm to +10 dBm Output Power Range
| Attribute | Value |
|---|---|
| Frequency Range | 300 kHz to 3 GHz |
| Number of Ports | 2-Port |
| Measurement Parameters | S11, S21 (Transmission and Reflection) |
| Dynamic Range | 100 dB |
| Output Power Range | -60 dBm to +10 dBm |
| Impedance | 50 Ohm |
| Display | 10.4-inch Color LCD |
| Number of Data Points | Up to 1601 Points |
| Connector Type | Type-N (50 Ohm) |
| Instrument Type | RF Network Analyzer (Transmission/Reflection) |
Keysight Technologies 8714ET Options:
- 8714ET - 1EC - Provides 75 ohm system impedance
- 8714ET - 1E1 - Adds a built-in 60 dB step attenuator to extend the output-power range to –60 dBm
- 8714ET - 100 - Fault location and structural return loss capability
- 8714ET - 101 - Transport case combined with fault location and structural return loss (Option 100) for field measurements
| Model | 8714ET |
|---|
The Keysight (Agilent) 8714ET Network Analyzer offers accurate magnitude and phase measurements from 300 kHz to 3 GHz with a built-in transmission/reflection test set. It supports 50 Ohm systems and provides vector-error-corrected measurements with high reliability. Two independent channels allow for simultaneous analysis of parameters such as return loss and transmission gain in various formats including SWR, delay, and complex impedance, displayed on Smith charts, polar, or rectangular formats.
With a dynamic range of up to 100 dB and real-time sweep speeds, the 8714ET enables narrowband and broadband detection for detailed network analysis. Standard features include a LAN interface, GP Instrument BASIC, and a built-in 3.5-inch disk drive for easy data storage and transfer. Optional configurations include a 75 Ohm version (1EC), 60 dB attenuator (1E1), DIN keyboard support (1CL), and fault location/SRL capability (100).
Testwall can supply the used Keysight (Agilent) 8714ET, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 8714ET.
