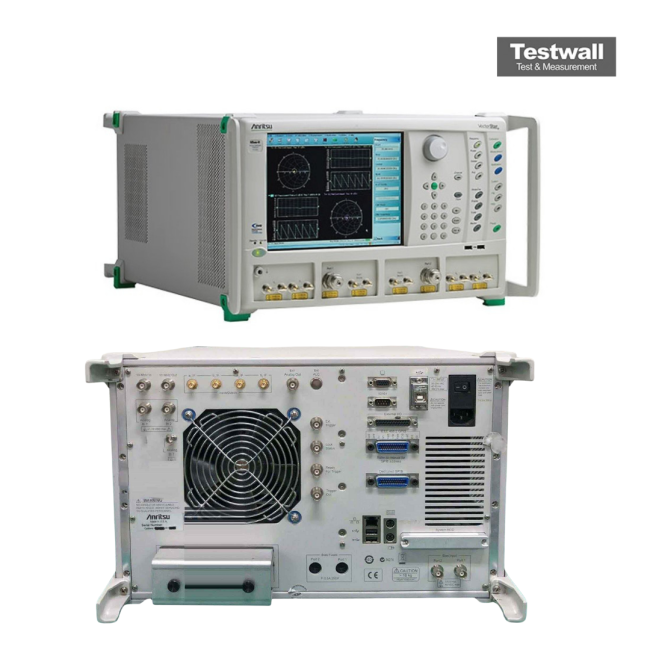

Anritsu MS4644B
| Attribute | Value |
|---|---|
| Frequency Range | 10 MHz to 40 GHz |
| Number of Ports | 4 |
| Dynamic Range | Up to 130 dB |
| Output Power Range | -50 dBm to +3 dBm |
| Trace Noise | 0.004 dB RMS typical |
| Measurement Speed | Up to 40,000 points per second |
| Connector Type | 2.92 mm (K-type) female |
| IF Bandwidth | 1 Hz to 1 MHz |
| Display | 10.4-inch XGA color LCD touchscreen |
| Power Requirements | 100–240 VAC, 50/60 Hz, 350 W maximum |
Anritsu MS4644B Options:
- MS4644B - 001 - Rack Mount, adds handles and removes feet for shelf-mounting into a 19" universal rack
- MS4644B - 002 - Time Domain
- MS4644B - 004 - Additional Serial-ATA (SATA) Solid State Drive (SSD) with OS and VectorStar Application Software
- MS4644B - 007 - Receiver Offset
- MS4644B - 021 - Universal Fixture Extraction
- MS4644B - 031 - Dual Source Architecture
- MS4644B - 032 - Internal RF Combiner, requires Option 31
- MS4644B - 035 - IF Digitizer
- MS4644B - 036 - Extended IF Digitizer Memory
- MS4644B - 041 - Noise Figure, requires Option 51 or Option 61 or Option 62
- MS4644B - 042 - PulseView™, requires Option 35
- MS4644B - 043 - DifferentialView™
- MS4644B - 044 - IMDView™
- MS4644B - 046 - Fast CW
- MS4644B - 047 - Eye Diagram, requires Option 2
- MS4644B - 048 - Differential Noise Figure, requires Option 51 or Option 61 or Option 62
- MS4644B - 051 - Direct Access Loops, not available with Option 61 or 62
- MS4644B - 053 - External ALC
- MS4644B - 061 - Active Measurements Suite, with 2 Step Attenuators
- MS4644B - 062 - Active Measurements Suite, with 4 Step Attenuators
- MS4644B - 070 - 70 kHz Low-End Frequency Extension
- MS4644B - 097 - Accredited Calibration, With Data
- MS4644B - 098 - Z540/Guide 25 Calibration, No Data
- MS4644B - 099 - Premium Calibration, With Data
| Model | MS4644B |
|---|
The Anritsu MS4644B VectorStar Vector Network Analyzer (VNA) offers unparalleled RF and microwave measurement performance across 10 MHz to 40 GHz, with high dynamic range up to 135 dB, enabling precise S‑parameter characterization for filters, waveguides, and active components.
Equipped with NI AWR Design Environment, it allows seamless on-instrument circuit modeling, EM simulation, and enhanced analysis through PulseView, DifferentialView, IMDView, and spectrum analysis for complex pulse, differential, and non-linear measurements.
Testwall supplies the Anritsu MS4644B with expert support and global delivery, ensuring engineers benefit from optimized workflows, reliable measurement data, and tailored configurations unmatched by competitors.
Testwall can supply the used Anritsu MS4644B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu MS4644B.
