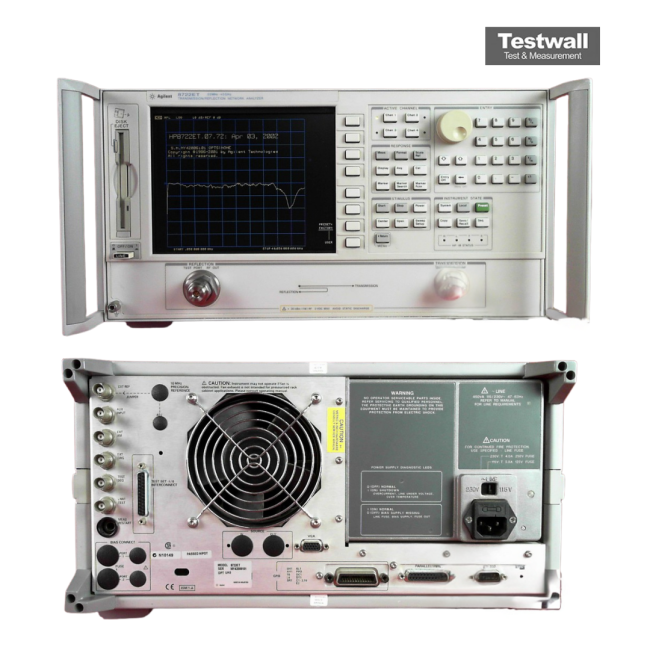

Keysight (Agilent) 8722ET
| Attribute | Value |
|---|---|
| Frequency Range | 50 MHz to 40 GHz |
| Number of Ports | 2-Port Vector Network Analyzer |
| Dynamic Range | Up to 100 dB |
| Output Power Range | -10 dBm to +10 dBm |
| Measurement Parameters | S11, S21 (Transmission and Reflection) |
| Display | 10.4-inch Color LCD Display |
| Connector Type | 3.5 mm (f) Test Port Connectors |
| Trace Noise | 0.005 dB RMS |
| Number of Data Points | Up to 1601 Points per Sweep |
| Interface/Connectivity | GPIB, RS-232, Parallel (Printer) Port |
Keysight Technologies 8722ET Options:
- 8722ET - 004 - Step attenuator: adds a 55 dB step attenuator to extend the minimum source power level by 55 dB
- 8722ET - 010 - Time-domain: converts frequency domain data to time domain using Fourier transformation technique (chirp Z)
- 8722ET - 1D5 - High-stability frequency reference: provides ±0.05 ppm temperature stability from 0 to 60°C (referenced to 25°C)
| Model | 8722ET |
|---|
The used Keysight (Agilent) 8722ET Vector Network Analyzer operates from 50 MHz to 40 GHz, featuring an integrated synthesized source, test set, and tuned receiver for precise RF and microwave measurements. It includes two measurement channels, four display channels, and supports fast sweeps and high-speed data transfer.
This analyzer offers internal automation with test-sequencing, pass/fail testing, powerful markers, and optional time-domain analysis, enhancing diagnostic capabilities for complex components.
Testwall can supply the used Keysight (Agilent) 8722ET, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 8722ET.
