Keysight (Agilent) 87405B
| Attribute | Value |
|---|---|
| Frequency Range | 300 kHz to 3 GHz |
| Gain | +26 dB typical |
| Noise Figure | 7 dB typical |
| Output Power at 1 dB Compression | +10 dBm typical |
| Input/Output Impedance | 50 Ohms |
| Connector Type | Type-N (female input, female output) |
| Power Supply Voltage | 15 VDC (supplied via bias tee or external supply) |
| Current Consumption | 350 mA typical |
| Operating Temperature Range | 0°C to +55°C |
| Input Power Range (Maximum Safe Input) | +20 dBm maximum |
| Model | 87405B |
|---|

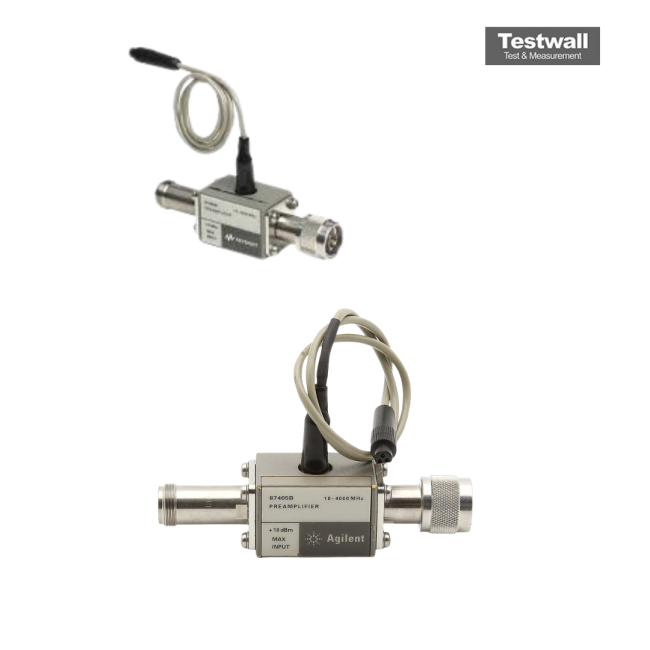

The Keysight (Agilent) 87405B microwave amplifier delivers compact, high-performance gain block functionality for RF systems. With a minimum gain of 22 dB, 8 dBm output power, and a low 5 dB noise figure, it's ideal for signal boosting near test ports. Powered at +15 V and 80 mA, the amplifier features built-in bias regulation and a robust design.
Suitable for preamplification and noise figure applications, the 87405B offers reliable, high-gain RF performance without requiring extra DC supplies.
Testwall can supply the used Keysight (Agilent) 87405B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 87405B.
