Keysight (Agilent) 87511A
| Attribute | Value |
|---|---|
| Frequency Range | 300 kHz to 3 GHz |
| Measurement Parameters | S-parameters (S11, S21, S12, S22), impedance, admittance, reflection coefficient |
| Connector Type | Type-N (50 Ohm) |
| System Impedance | 50 Ohm |
| Dynamic Range | Up to 100 dB |
| Compatible Instrument | Keysight 8751A Network Analyzer |
| Test Set Type | S-parameter Test Set |
| Port Configuration | 2-Port |
| Maximum Input Power | +26 dBm |
| Operating Temperature | 0°C to 55°C |
Keysight Technologies 87511A Options:
- 87511A - 001 - Type N(f) test port connectors (instead of standard 50 Ω precision 7-mm connectors)
| Model | 87511A |
|---|

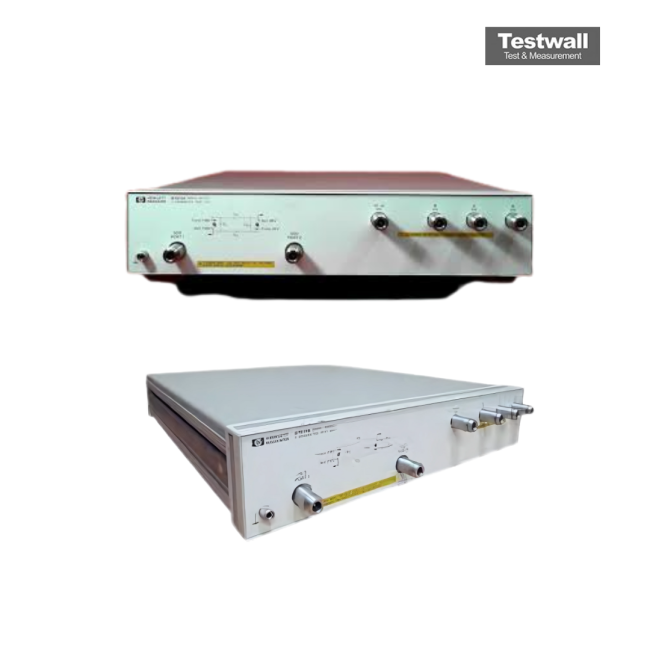

The Keysight (Agilent) 87511A S-Parameter Test Set enables accurate S-parameter measurements of 2-port devices across a frequency range of 100 kHz to 500 MHz. It features 50 Ω test ports, with connector types including 7 mm (Option 800) and N-type female (Option 001). Directivity exceeds 35 dB from 300 kHz to 500 MHz, supporting measurements with high precision. Controlled via the Agilent 8751A, the test set operates up to 20 dBm output power.
Ideal for RF applications, the 87511A is designed for precise impedance and signal analysis, enhancing lab and field measurement capabilities. Calibration kits are not included.
Testwall can supply the used Keysight (Agilent) 87511A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 87511A.
