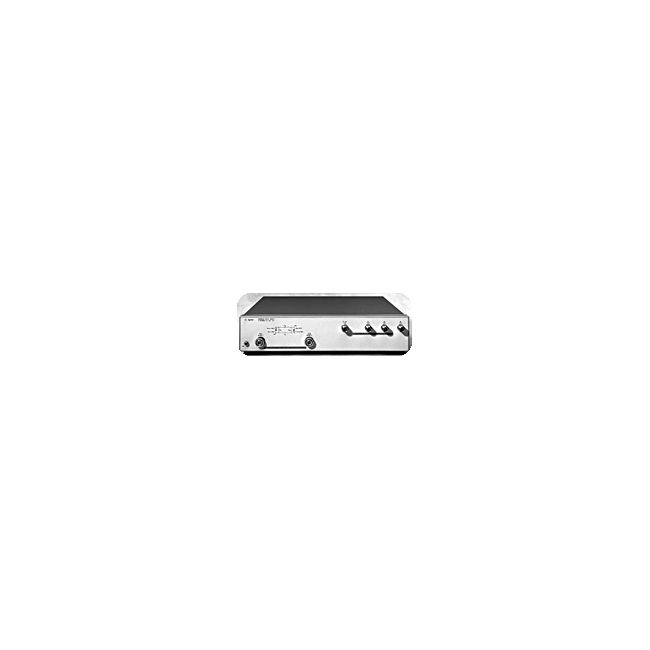

Keysight (Agilent) 87511B
| Attribute | Value |
|---|---|
| Frequency Range | 300 kHz to 3 GHz |
| Measurement Parameters | S-parameters (S11, S21, S12, S22), impedance, admittance, reflection coefficient |
| Connector Type | Type-N (50 Ohm) |
| Dynamic Range | Up to 100 dB |
| Output Power Range | -85 dBm to +20 dBm |
| System Impedance | 50 Ohm |
| Compatible Instrument | HP/Agilent/Keysight 8751A Network Analyzer |
| Test Set Type | S-Parameter Test Set |
| Number of Ports | 2-Port |
| Operating Temperature | 0°C to 55°C |
Keysight (Agilent) 87511B Options:
- 87511B - 001 - Type N(f) test ports (instead of standard 7-mm connectors)
| Model | 87511B |
|---|
The Keysight (Agilent) 87511B S-parameter test set enables precise S-parameter measurement of 2-port devices across a frequency range of 100 kHz to 500 MHz using a network analyzer. It features 75 Ohm type N(f) connectors on its test ports and does not include calibration kits. This unit is compatible with both 87511A and 87511B models, offering flexible test configuration.
Ideal for RF component analysis, it supports both general and specific measurements without needing to reference the full manual. Users can directly follow dedicated instructions for specific tasks.
Testwall can supply the used Keysight (Agilent) 87511B S-parameter test set, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 87511B S-parameter test set.
