Keysight (Agilent)

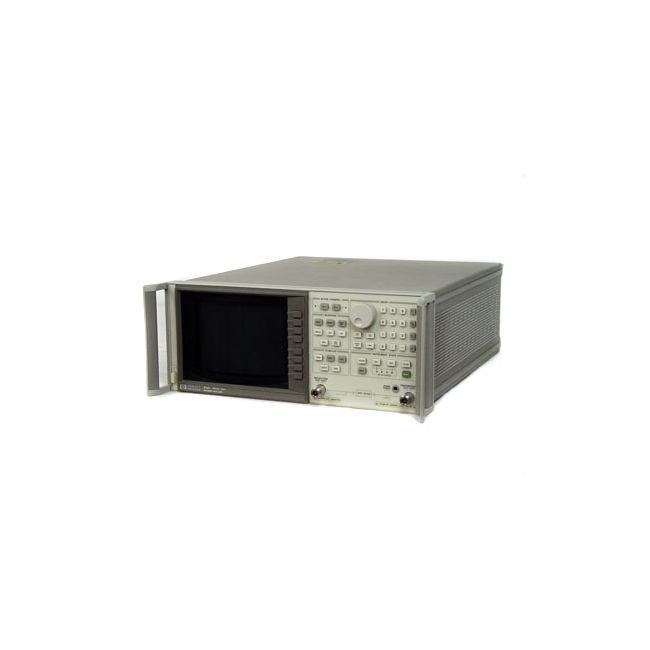

Keysight (Agilent) 8753D-075
30KHz-3GHz 75 Ohm Vector Network Analyser
300 kHz to 6 GHz Frequency Range
075 (75 Ohm System Impedance) Option
75 Ohm System Impedance
2-Port Vector Network Analyzer Number of Ports
100 dB Dynamic Range
| Attribute | Value |
|---|---|
| Frequency Range | 300 kHz to 6 GHz |
| Option | 075 (75 Ohm System Impedance) |
| System Impedance | 75 Ohm |
| Number of Ports | 2-Port Vector Network Analyzer |
| Dynamic Range | 100 dB |
| Output Power Range | -85 dBm to +10 dBm |
| Measurement Parameters | S-Parameters (S11, S21, S12, S22), Impedance, Admittance |
| Display | Color CRT Display |
| Interface/Connectivity | GPIB (IEEE-488) |
| Power Requirements | 100/120/220/240 VAC, 50/60 Hz |
Keysight Technologies 8753D-075 Options:
- 8753D-075 - 002 - Harmonic Measurement Capability
- 8753D-075 - 006 - 6 GHz Frequency Extension
- 8753D-075 - 010 - Time-Domain Capability
- 8753D-075 - 011 - Delete Built-in Test Set
- 8753D-075 - 075 - 75 Ω Impedance
- 8753D-075 - 1D5 - High-Stability Frequency Reference
- 8753D-075 - K36 - Duplexer Test Adapter
- 8753D-075 - K39 - Three-Port Test Set Adapter
- 8753D-075 - 009 - Mechanical Test Port Switch
- 8753D-075 - 913 - Rackmount Kit (5062-4069)
| Model | 8753D-075 |
|---|
The Keysight (Agilent) 8753D-075 is a high-performance RF network analyzer featuring a frequency range from 30 kHz to 6 GHz, with Option 075 for impedance measurements. It offers a base frequency of 300 kHz and integrates an S-parameter test set for efficient, stable calibrations. Designed for both lab and production environments, the 8753D delivers enhanced ESD resistance and exceptional reliability. Its advanced architecture supports precise characterization of active and passive components, enabling cost-effective yet accurate RF measurements.
Ideal for RF engineers and test professionals, the 8753D-075 simplifies network analysis through user-friendly interfaces and comprehensive functionality across a broad frequency spectrum.
Testwall can supply the used Keysight (Agilent) 8753D-075, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 8753D-075.
