Keysight (Agilent) AC6801A
| Attribute | Value |
|---|---|
| Output Voltage Range | 0 to 310 V AC (RMS) |
| Output Frequency Range | 45 Hz to 500 Hz |
| Maximum Output Power | 500 VA |
| Maximum Output Current | 4.2 A RMS / 12.6 A Peak |
| DC Output Voltage Range | 0 to 425 V DC |
| Line Regulation | 0.1% or less |
| Load Regulation | 0.5% or less |
| Total Harmonic Distortion (THD) | 0.5% or less (at resistive load) |
| Input Voltage | 100 to 240 V AC, 50/60 Hz |
| Interface / Connectivity | USB, LAN (LXI), and RS-232C |
Keysight (Agilent) AC6801A Options:
- AC6801A - AC68ALGU - Upgrade - user-installable analog interface board for AC6800 Series AC sources
- AC6801A - AC68GPBU - Upgrade - user-installable GPIB interface board for AC6800 Series AC sources
- AC6801A - AC68RAC3 - Rack mount flange kit for AC6801A, AC6802A, AC6803A
| Model | AC6801A |
|---|

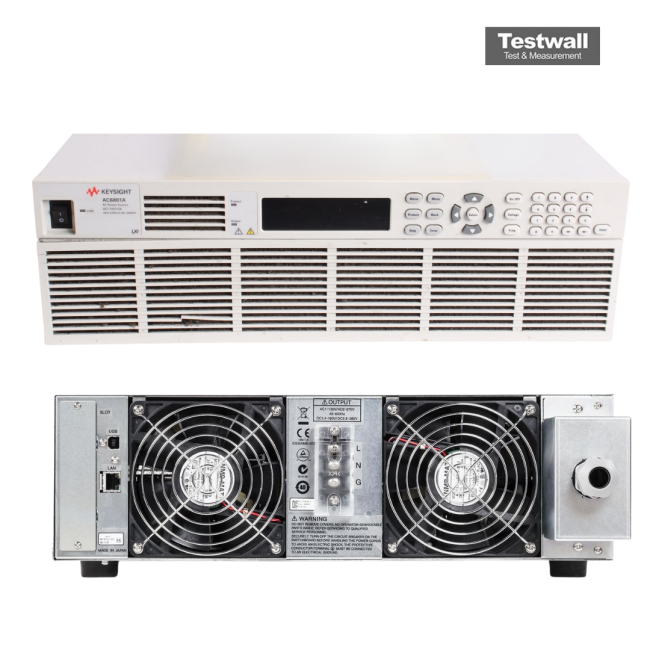

The Keysight (Agilent) AC6801A is a 500 VA AC Power Source delivering up to 270 V and 2.5 A. It supports both AC and DC outputs, combining power supply and measurement functions in one. With standard LAN/LXI-Core and USB interfaces, and optional GPIB or analog interface, it ensures flexibility in diverse test environments.
This model offers an intuitive user interface for seamless control, with direct front-panel access or remote programmability, tailored to various power testing needs.
Testwall can supply the used Keysight (Agilent) AC6801A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) AC6801A.
