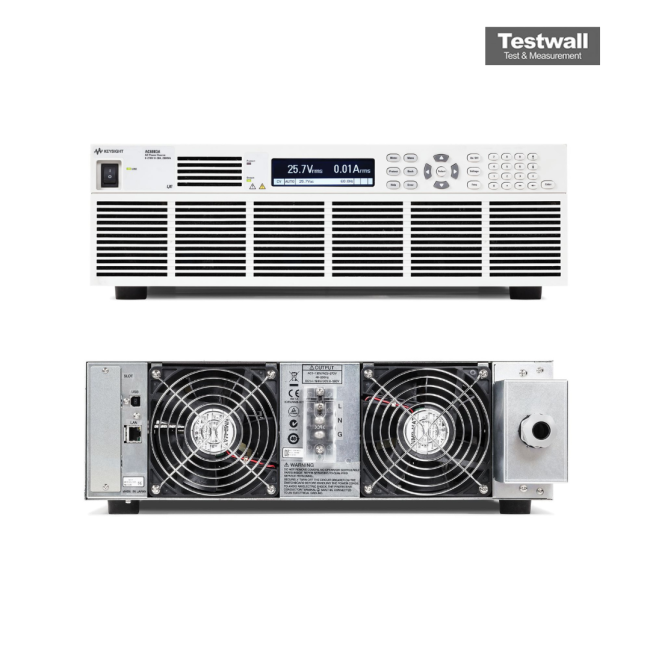

Keysight (Agilent) AC6802A
| Attribute | Value |
|---|---|
| Output Voltage Range | 0 to 150 VAC / 0 to 300 VAC |
| Output Frequency Range | 45 Hz to 500 Hz |
| Maximum Output Power | 500 VA |
| Maximum Output Current | 6.7 A RMS (150 V range) / 3.3 A RMS (300 V range) |
| Output Waveform | Sine Wave |
| Voltage Regulation | 0.1% + 0.1 V |
| Total Harmonic Distortion (THD) | Less than 0.5% (at full resistive load) |
| Input Voltage | 100 VAC to 240 VAC, Single Phase |
| Input Frequency | 47 Hz to 63 Hz |
| Operating Temperature | 0°C to 40°C |
Keysight (Agilent) AC6802A Options:
- AC6802A - AC68ALGU - Upgrade - user-installable analog interface board for AC6800 Series AC sources
- AC6802A - AC68GPBU - Upgrade - user-installable GPIB interface board for AC6800 Series AC sources
- AC6802A - AC68RAC3 - Rack mount flange kit for AC6801A, AC6802A, AC6803A
| Model | AC6802A |
|---|
The Keysight (Agilent) AC6802A is a basic AC power source that supports AC, DC, and AC+DC output modes with LAN/LXI Core and USB interfaces. It offers voltage and frequency variability for simulating global AC power conditions and supports analog waveform creation via optional analog input.
Ideal for testing non-sinusoidal waveforms, power factor correction, and transient simulations, the AC6802A features a user-friendly interface and remote access through a built-in web server.
Testwall can supply the used Keysight (Agilent) AC6802A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) AC6802A.
