Keysight (Agilent) CX1103A
| Attribute | Value |
|---|---|
| Frequency Range | 1 MHz to 300 MHz |
| Impedance Measurement Range | 1 mΩ to 10 MΩ |
| Basic Impedance Accuracy | 0.1% |
| Measurement Parameters | |Z|, |Y|, R, X, G, B, L, C, D, Q, θ, Vac, Iac, Vdc, Idc |
| Test Signal Level (Voltage) | 5 mV to 1 V RMS |
| DC Bias Voltage | 0 V to ±40 V |
| DC Bias Current | 0 A to ±100 mA |
| Interface | USB, LAN (LXI Core), GPIB |
| Display | 10.1-inch color LCD touchscreen |
| Number of Measurement Points | Up to 1601 points per sweep |
Keysight (Agilent) CX1103A Options:
- CX1103A - A6J - ANZI Z540-1-1994 Calibration
- CX1103A - UK6 - Commercial Calibration Certificate with Test Data
| Model | CX1103A |
|---|

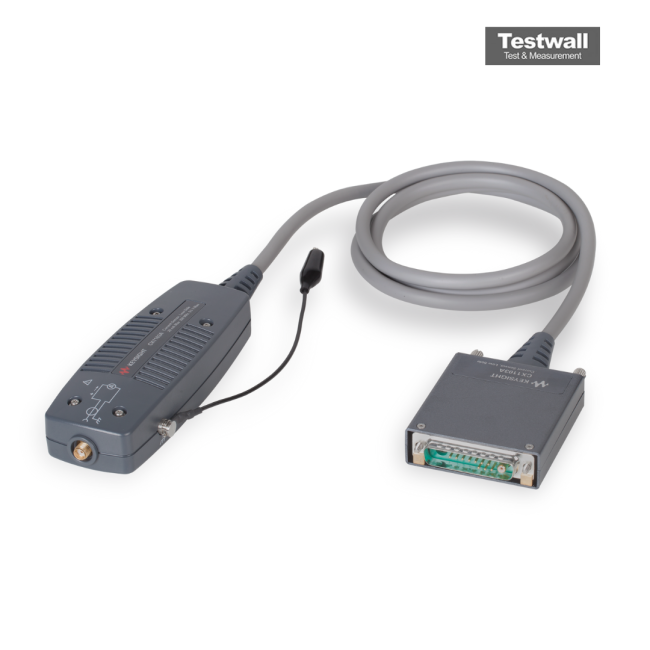

The Keysight (Agilent) CX1103A is a high-precision current sensor for the CX3300 series, offering an unmatched 200 MHz bandwidth for low-side current measurements with SMA connectors. It supports dynamic current measurement from 100 pA to 20 mA with ultra-low burden voltage thanks to low input resistance of 4 Ω or 50 Ω, and features offset-adjustable trans-impedance technology.
Ideal for analyzing small waveforms on large DC bias currents, the CX1103A ensures clear and accurate current waveform visualization, especially at the circuit’s low side.
Testwall can supply the used Keysight (Agilent) CX1103A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) CX1103A.
