Tektronix DPO3PWR
| Attribute | Value |
|---|---|
| Compatible Oscilloscopes | Tektronix DPO3000 and MSO3000 Series |
| Number of Automated Power Measurements | Over 30 automated power measurements |
| Input Power Analysis | Real power (watts), apparent power (VA), reactive power (VAR), power factor, and phase angle |
| Switching Loss Analysis | Measures turn-on, turn-off, and conduction losses in switching devices |
| Harmonics Analysis | Up to 50th harmonic analysis with bar graph display, compliant with IEC 61000-3-2 standard |
| Ripple Analysis | Measures output voltage and current ripple on DC power supplies |
| Safe Operating Area (SOA) Testing | Provides SOA mask testing for power transistors to verify device operation within safe limits |
| Modulation Analysis | Supports pulse width modulation (PWM) analysis including frequency, duty cycle, and period |
| Application Module Type | Software application module (license key-based activation, no additional hardware required) |
| deskew and Magnetic Loss Support | Supports current probe deskew and magnetic component (inductor/transformer) loss measurements |
| Model | DPO3PWR |
|---|

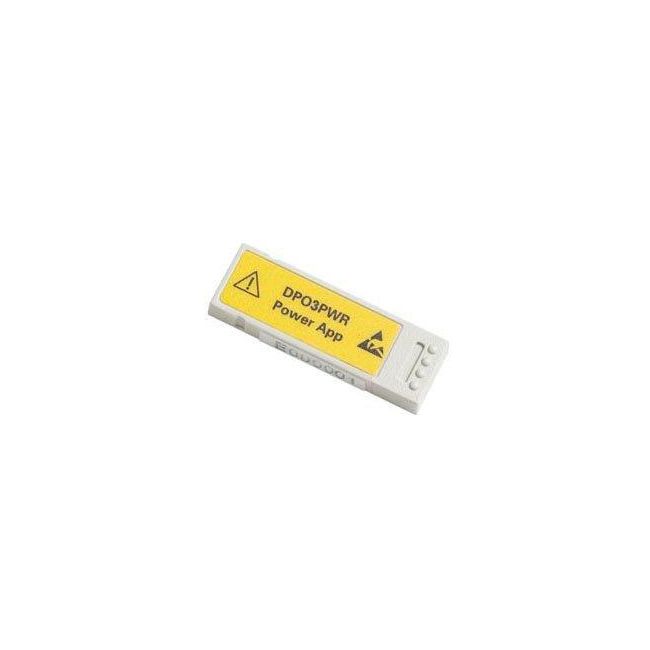

The Tektronix DPO3PWR transforms a DPO or MSO3000 oscilloscope into a complete power measurement system, offering switching loss analysis, power quality evaluation, harmonics testing, and safe operating area (SOA) visualization. It includes tools for dV/dt, dI/dt, deskew, and ripple/modulation measurement.
Ideal for power-supply design, it enables compliance testing, switching device analysis, and harmonic inspection up to 400 orders, with CSV export for advanced reporting.
Testwall can supply the used Tektronix DPO3PWR, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix DPO3PWR.
