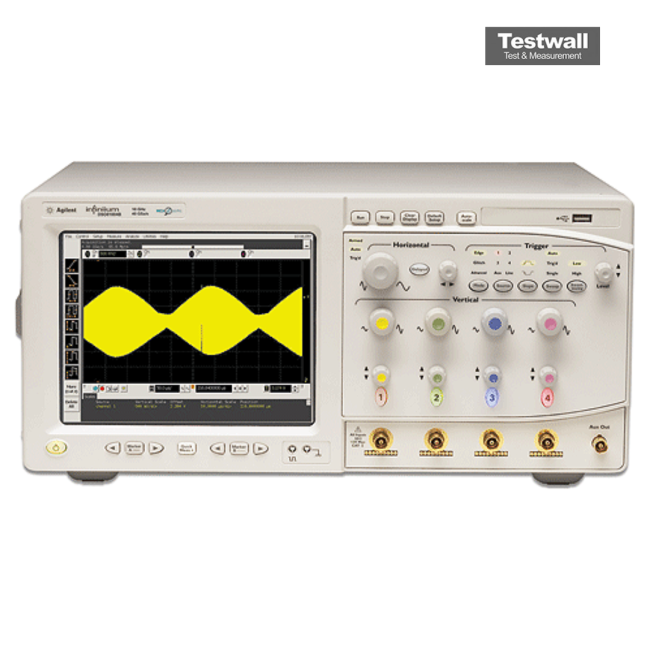

Keysight (Agilent) DSA80000B
| Attribute | Value |
|---|---|
| Bandwidth | Up to 80 GHz |
| Sample Rate | Up to 160 GSa/s |
| Number of Channels | 2 or 4 channels |
| Vertical Resolution | 8 bits |
| Memory Depth | Up to 2 Gpts per channel |
| Rise Time | As low as 4.4 ps |
| Display | 15-inch XGA color display |
| Operating System | Windows 7 |
| Input Impedance | 50 Ohms |
| Waveform Update Rate | Up to 1,000,000 waveforms per second |
| Model | DSA80000B |
|---|
The Keysight (Agilent) DSA80000B is built upon the Infiniium DSO80000B oscilloscope platform, offering a real-time bandwidth range from 8 to 13 GHz and a maximum sampling rate of 40 GSa/s. It features a low-noise floor of approximately 294 µV, ultra-low trigger jitter under 500 fs, and a deep memory of 2 Mpts at full sampling rate. Included analysis tools like EZJIT Plus and high-speed serial capabilities make it ideal for RF and serial data diagnostics.
This analyzer excels in jitter measurements, signal integrity testing, and high-speed digital communication analysis. Perfect for design validation and compliance testing applications.
Testwall can supply the used Keysight (Agilent) DSA80000B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) DSA80000B.
