Rohde & Schwarz MXO 4
| Attribute | Value |
|---|---|
| Bandwidth | 200 MHz to 1.5 GHz (upgradeable) |
| Number of Channels | 4 analog channels |
| Sample Rate | Up to 4.5 Gsample/s |
| Memory Depth | Up to 400 Mpoints per channel |
| Vertical Resolution | 12-bit (18-bit in high-resolution mode) |
| Display | 13.3-inch capacitive touchscreen, 1920 x 1080 resolution |
| Digital Channels | Up to 16 digital channels (with logic probe option) |
| Waveform Update Rate | Up to 4.5 million waveforms per second |
| Connectivity | USB, LAN (LXI), HDMI, optional WLAN |
| Serial Protocol Analysis | Supports I2C, SPI, UART, CAN, LIN, and more (via software options) |
Rohde & Schwarz MXO 4 Options:
- MXO 4 - B243 - Upgrade of R&S®MXO 4 Series oscilloscopes to 350 MHz bandwidth
- MXO 4 - B245 - Upgrade of R&S®MXO 4 Series oscilloscopes to 500 MHz bandwidth
- MXO 4 - B2410 - Upgrade of R&S®MXO 4 Series oscilloscopes to 1 GHz bandwidth
- MXO 4 - B2415 - Upgrade of R&S®MXO 4 Series oscilloscopes to 1.5 GHz bandwidth
- MXO 4 - B1 - Mixed signal option with 16 digital channels, for R&S®MXO 4 Series oscilloscopes
- MXO 4 - B6 - Arbitrary waveform generator, 100 MHz, 2 analog channels
- MXO 4 - B108 - Memory upgrade to 800 Mpoints on 2 channels
- MXO 4 - K510 - Low speed serial triggering and decoding (I2C/SPI/UART/RS-232/RS-422/RS-485)
- MXO 4 - K520 - Automotive serial triggering and decoding (CAN/CAN FD/CAN XL/LIN)
- MXO 4 - K36 - Frequency response analysis
- MXO 4 - PK1 - Application bundle with options: R&S®MXO4-K510, R&S®MXO4-K520, R&S®MXO4-K36, R&S®MXO4-B6
| Model | MXO 4 |
|---|

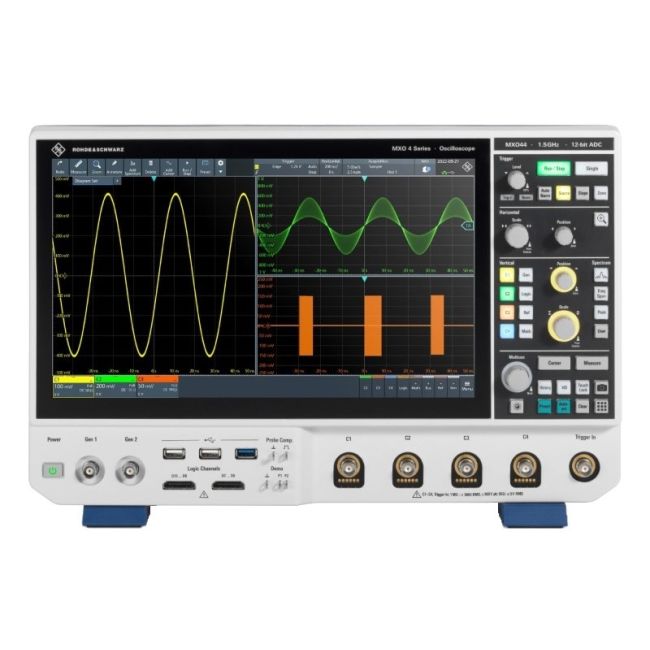

RHODE & SCHWARZ MXO 4 Oscilloscope
The Rhode & Schwarz MXO 4 Oscilloscope utilizes advanced technologies to achieve fast and accurate results. Custom technology and innovative features in the MXO 4 oscilloscope quickly boost your understanding of circuit behaviors. The Rhode & Schwarz MXO 4 Oscilloscope processing path contains a dedicated ASIC: the MXO-EP (extreme performance). Thanks to optimized signal processing, the MXO 4 oscilloscope reaches an exceptional update rate. Its unique architecture allows the MXO 4 to acquire, process and display up to > 4.5 million waveforms per second.
The Rhode & Schwarz MXO 4 Oscilloscope incorporates a 12-bit ADC. 12 bit vertical resolution delivers 4096 quantization levels for precise vertical sampling. This is a 16-fold improvement over 8-bit ADCs. The ADC stays in 12-bit mode all the time, even at the fastest sample rates. The MXO 4 memory depth is the most important attribute that determines an oscilloscope's ability to handle a large range of troubleshooting tasks. More acquisition memory gives oscilloscopes the ability to capture more time. More memory enables oscilloscopes to retain the maximum sample rate and bandwidth even with slower timebase settings. With 400 Mpoints acquisition memory standard on all four channels simultaneously, the MXO 4 oscilloscope offers up to 100 times the standard memory compared to the primary competitor.
Specifications for the RHODE & SCHWARZ MXO 4 Oscilloscope Include:
| Bandwidth | 200 MHz - 1.5 GHz (Option Dependent) |
| Max Memory (per channel) | 400 Mpoints (800 Mpoints with option) |
| ADC Resolution; system architecture | 12 bit; 18 bit |
| Acquisition rate | 4.5 million waveforms per second |
