Keysight (Agilent)

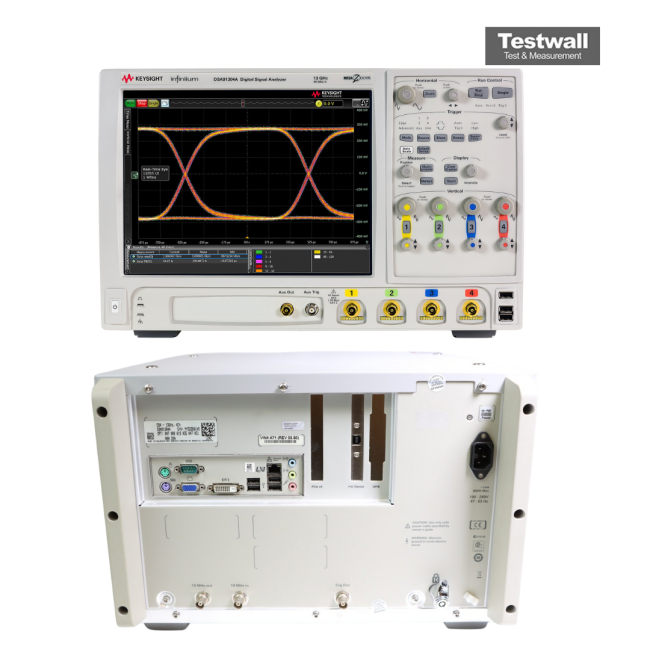

Keysight (Agilent) DSA91304A
4 Ch 13 GHz Digital Signal Analyzer
13 GHz Bandwidth
4 Number of Channels
40 GSa/s (single channel), 20 GSa/s (2 channels), 10 GSa/s (4 channels) Sample Rate
8 bits Vertical Resolution
Up to 2 Gpts (with memory option) Memory Depth
| Attribute | Value |
|---|---|
| Bandwidth | 13 GHz |
| Number of Channels | 4 |
| Sample Rate | 40 GSa/s (single channel), 20 GSa/s (2 channels), 10 GSa/s (4 channels) |
| Vertical Resolution | 8 bits |
| Memory Depth | Up to 2 Gpts (with memory option) |
| Rise Time | 32 ps |
| Noise Floor | Less than 1.4 mV RMS (typical at 50 mV/div) |
| Input Impedance | 50 Ohm |
| Display | 15-inch XGA color display (1024 x 768 resolution) |
| Operating System | Windows 7 Professional |
Keysight Technologies DSA91304A Options:
- DSA91304A - 002 - EZJIT Jitter Analysis Software
- DSA91304A - 003 - High Speed Serial Data Analysis Software
- DSA91304A - 004 - EZJIT Plus Jitter Analysis Software
- DSA91304A - 005 - Noise Reduction and Bandwidth Control
- DSA91304A - 006 - My Infiniium Integration Package
- DSA91304A - 007 - I2C and SPI Low-speed Data Analysis
- DSA91304A - 008 - CAN Serial Data Analysis Software
- DSA91304A - 009 - InfiniiScan Event Identification Software
- DSA91304A - 010 - Infiniium User Defined Function Software
- DSA91304A - 011 - Infiniium Application Remote Program Interface Software
- DSA91304A - 021 - Ethernet Electrical Performance Validation and Compliance Software
- DSA91304A - 022 - PCI Express Electrical Performance Validation and Compliance Software
- DSA91304A - 023 - HDMI Electrical Performance Validation and Compliance Software
- DSA91304A - 024 - Fully Buffered DIMM Validation and Compliance Software
- DSA91304A - 025 - Fibre Channel Validation and Compliance Software
- DSA91304A - 026 - Serial ATA Electrical Performance Validation and Compliance Software
- DSA91304A - 027 - Serial Attached SCSI Electrical Performance Validation and Compliance Software
- DSA91304A - 028 - DisplayPort Validation and Compliance Software
- DSA91304A - 029 - USB 2.0 Validation and Compliance Software
- DSA91304A - 030 - XAUI Electrical Validation and Compliance Software with 10GBASE-CX4, CPRI, OBSAI, and Serial RapidIO Support
- DSA91304A - 031 - DDR1 Validation and Compliance Software
- DSA91304A - 032 - DDR2 Validation and Compliance Software
- DSA91304A - 033 - DDR3 Validation and Compliance Software
- DSA91304A - 801 - 80 GBytes or greater hard disk drive (removable)
- DSA91304A - 803 - Additional 2 GByte CPU Memory (4 GByte total)
- DSA91304A - 805 - GPIB card
- DSA91304A - 807 - High Impedance Adapter (includes one 10073C passive probe)
- DSA91304A - 821 - Precision BNC to SMA adaptors (qty 2)
- DSA91304A - 900 - Power cord, United Kingdom
- DSA91304A - 901 - Power cord, Australia
- DSA91304A - 902 - Power cord, Europe
- DSA91304A - 903 - Power cord, United States
- DSA91304A - 906 - Power cord, Switzerland
- DSA91304A - 912 - Power cord, Denmark
- DSA91304A - 917 - Power cord, Africa
- DSA91304A - 918 - Power cord, Japan
- DSA91304A - 919 - Power cord, Israel
- DSA91304A - 920 - Power cord, Argentina
- DSA91304A - 921 - Power cord, Chile
- DSA91304A - 922 - Power cord, China
- DSA91304A - 927 - Power cord, Thailand
- DSA91304A - 1CM - Rackmount Kit
- DSA91304A - A6J - ANSI Z540 compliant calibration
- DSA91304A - 1A7 - ISO17025 compliant calibration
| Model | DSA91304A |
|---|
The Keysight (Agilent) DSA91304A continues the Infiniium series with 13–16 GHz bandwidth and 40 GSa/s real-time sampling across 4 channels, ideal for protocol, jitter, and compliance analysis.
Features include 1 Gpt memory per channel, touchscreen interface, and advanced debug and measurement tools.
Testwall can supply the used Keysight (Agilent) DSA91304A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) DSA91304A.
