Tektronix 2236
| Attribute | Value |
|---|---|
| Bandwidth | 100 MHz |
| Number of Channels | 2 Analog Channels |
| Vertical Sensitivity | 2 mV/div to 5 V/div |
| Time Base Range | 0.5 ns/div to 0.5 s/div |
| Frequency Counter Range | DC to 100 MHz |
| Multimeter Functions | AC/DC Voltage, AC/DC Current, Resistance, Diode Test |
| Display Type | CRT (Cathode Ray Tube) |
| Input Impedance | 1 MΩ in parallel with 20 pF |
| Maximum Input Voltage | 400 V (DC + Peak AC) |
| Power Requirements | 90–250 VAC, 45–440 Hz |
| Model | 2236 |
|---|

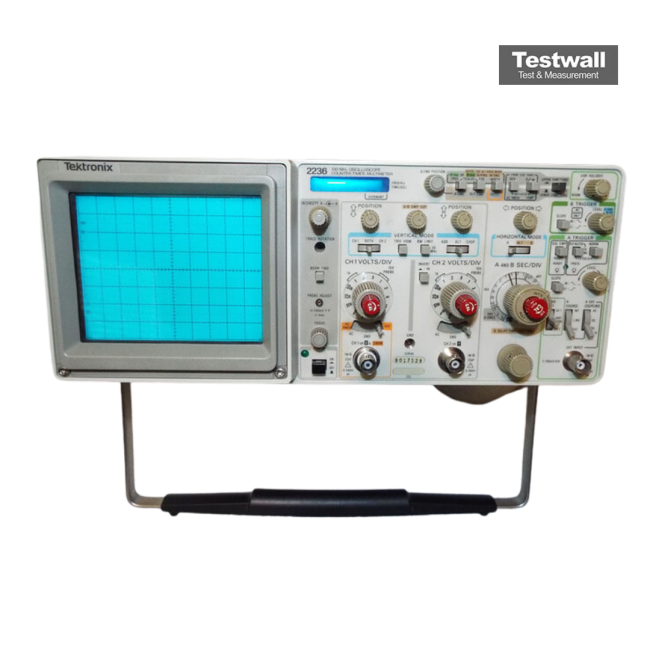

The Tektronix 2236 2 Channel 100MHz Analogue Scope offers dual-channel measurement capability with a bandwidth of 100MHz, delivering precise analogue signal analysis. It features an integrated counter/timer and a bright CRT display for accurate waveform visualization. Engineered for durability, it ensures reliable operation in demanding environments.
Ideal for laboratory, service, or educational settings, the Tektronix 2236 supports detailed troubleshooting and analysis of high-frequency signals with user-friendly controls.
Testwall can supply the used Tektronix 2236 2 Channel 100MHz Analogue Scope, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix 2236 2 Channel 100MHz Analogue Scope.
