Keysight (Agilent)
Keysight (Agilent) DSO5052A
500 MHz Bandwidth
2 Number of Channels
2 GSa/s (on each channel) Sample Rate
4 Mpts (2 Mpts per channel) Memory Depth
8-bit Vertical Resolution
| Attribute | Value |
|---|---|
| Bandwidth | 500 MHz |
| Number of Channels | 2 |
| Sample Rate | 2 GSa/s (on each channel) |
| Memory Depth | 4 Mpts (2 Mpts per channel) |
| Vertical Resolution | 8-bit |
| Vertical Sensitivity Range | 1 mV/div to 10 V/div |
| Timebase Range | 2 ns/div to 50 s/div |
| Display | 8.5-inch WVGA color display (800 x 480 pixels) |
| Input Impedance | 1 MΩ ± 1% in parallel with 13 pF ± 2 pF |
| Waveform Update Rate | Up to 100,000 waveforms per second |
| Model | DSO5052A |
|---|

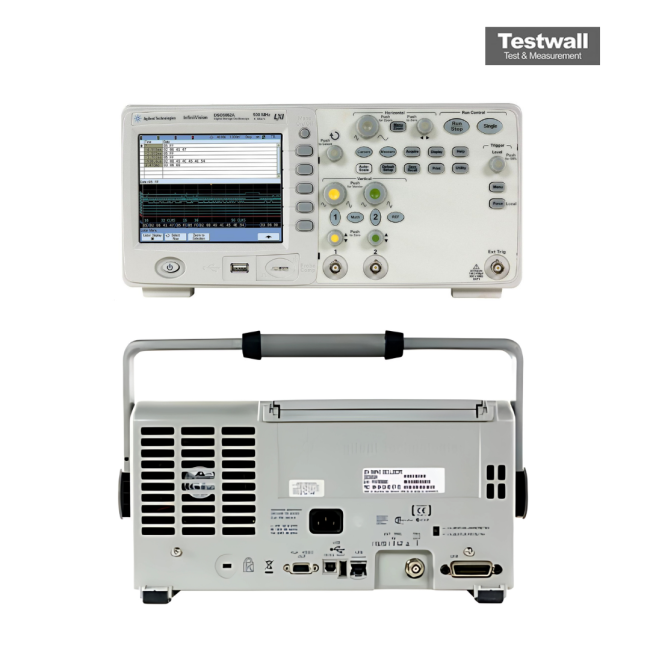

The Keysight (Agilent) DSO5052A Oscilloscope features 500 MHz bandwidth, 2 channels, and a 4 GSa/s sample rate, delivering precise signal capture with 8 Mpts memory and a 100,000 wfms/s update rate.
This oscilloscope offers XGA (1024x768) display with 256 intensity levels, connectivity via USB, LAN, GPIB, and is LXI-C compliant with full remote control including browser access.
Testwall can supply the used Keysight (Agilent) DSO5052A Oscilloscope, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) DSO5052A Oscilloscope.
