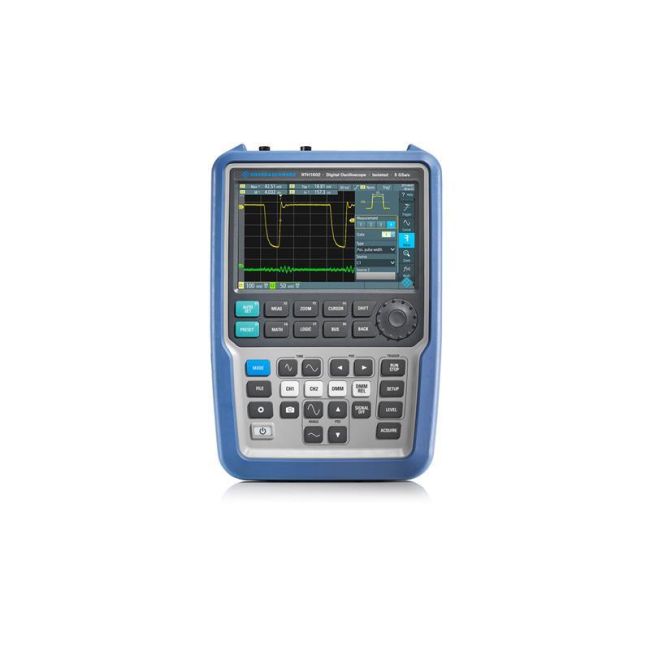

Rohde & Schwarz RTH1004 + RTH-B241 Handheld Oscilloscope, 100 MHz, 4 Channels
| Attribute | Value |
|---|---|
| Bandwidth | 100 MHz |
| Number of Channels | 4 |
| Sample Rate | 1.25 GSa/s |
| Memory Depth | 10 Mpts per channel |
| Display | 5.7-inch color touchscreen, 640 x 480 resolution |
| Vertical Resolution | 8-bit (12-bit in high-resolution mode) |
| Input Impedance | 1 MΩ / 50 Ω |
| Battery Life | Up to 3 hours with included rechargeable battery pack (RTH-B241) |
| Connectivity | USB, LAN (Ethernet), Wi-Fi (optional) |
| IP Rating / Form Factor | Handheld, ruggedized design with IP51 protection rating |
Rohde & Schwarz RTH1004 + RTH-B241 Handheld Oscilloscope, 100 MHz, 4 Channels Options:
- RTH1004 - RTH-B1 - Mixed signal option, 250 MHz (additional 8 logic channels)
- RTH1004 - RTH-B241 - Upgrade of R&S®RTH1004 oscilloscopes to 100 MHz bandwidth
- RTH1004 - RTH-B242 - Upgrade of R&S®RTH1004 oscilloscopes to 200 MHz bandwidth
- RTH1004 - RTH-B243 - Upgrade of R&S®RTH1004 oscilloscopes to 350 MHz bandwidth
- RTH1004 - RTH-B244 - Upgrade of R&S®RTH1004 oscilloscopes to 500 MHz bandwidth
- RTH1004 - RTH-K1 - I2C/SPI serial triggering and decoding
- RTH1004 - RTH-K2 - UART/RS-232/RS-422/RS-485 serial triggering and decoding
- RTH1004 - RTH-K3 - CAN/LIN serial triggering and decoding
- RTH1004 - RTH-K9 - CAN-FD serial triggering and decoding (requires active RTH-K3 option as basis)
- RTH1004 - RTH-K10 - SENT serial triggering and decoding
- RTH1004 - RTH-K15 - History and segmented memory
- RTH1004 - RTH-K18 - Spectrum analysis
- RTH1004 - RTH-K19 - Advanced triggering
- RTH1004 - RTH-K33 - Frequency counter
- RTH1004 - RTH-K34 - Harmonic analysis
- RTH1004 - RTH-K200 - Wireless LAN, all countries except US and Canada
- RTH1004 - RTH-K200US - Wireless LAN, for US and Canada only
- RTH1004 - RTH-K201 - Web interface remote control
| Model | RTH1004 |
|---|
The Rohde and Schwarz RTH1004 + RTH-B241 Handheld Oscilloscope delivers 100 MHz bandwidth across 4 isolated channels with CAT IV 600 V/CAT III 1000 V safety ratings. Featuring 10-bit ADC resolution, a high sample rate of up to 5 GSa/s, and 50 Msample segmented memory, it offers lab-level precision in a portable design.
This unit integrates a digital multimeter, logic and protocol analyzers (I²C, SPI, UART, CAN/LIN, CAN-FD, SENT), a spectrum analyzer, frequency counter, and harmonics analyzer—making it highly versatile for field and lab diagnostics.
Testwall can supply the used Rohde and Schwarz RTH1004 + RTH-B241, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde and Schwarz RTH1004 + RTH-B241.
