Keysight (Agilent) DSO6014A
| Attribute | Value |
|---|---|
| Bandwidth | 100 MHz |
| Number of Channels | 4 |
| Sample Rate | 2 GSa/s |
| Memory Depth | 8 Mpts (standard), up to 32 Mpts (optional) |
| Vertical Resolution | 8-bit |
| Vertical Sensitivity | 1 mV/div to 5 V/div |
| Time Base Range | 2 ns/div to 50 s/div |
| Waveform Update Rate | Up to 100,000 waveforms per second (with MegaZoom III technology) |
| Display | 8.5-inch WVGA (800 x 480) color LCD display |
| Connectivity / Interface | USB, LAN (LXI), GPIB (optional) |
Keysight Technologies DSO6014A Options:
- DSO6014A - Option 2ML - 2 Mpts memory for MSO/DSO601xA/603xA models
- DSO6014A - Option 8ML - 8 Mpts memory for MSO/DSO601xA/603xA models
- DSO6014A - N2910A - 2 Mpts memory for MSO/DSO601xA/603xA models (after purchase)
- DSO6014A - N2911A - 8 Mpts memory for MSO/DSO601xA/603xA models (after purchase)
- DSO6014A - N2914A - MSO upgrade kit for MSO/DSO601xA/603xA models
- DSO6014A - R-51B-001-3C - 1-year return-to-Agilent warranty, extended to 3-years
- DSO6014A - R-51B-001-5C - 1-year return-to-Agilent warranty, extended to 5-years
- DSO6014A - A6J - ANSI Z540-compliant calibration
- DSO6014A - ABA - Printed user's guide in English
- DSO6014A - ABJ - Printed user's guide in Japanese
- DSO6014A - AB2 - Printed user's guide in simplified Chinese
| Model | DSO6014A |
|---|

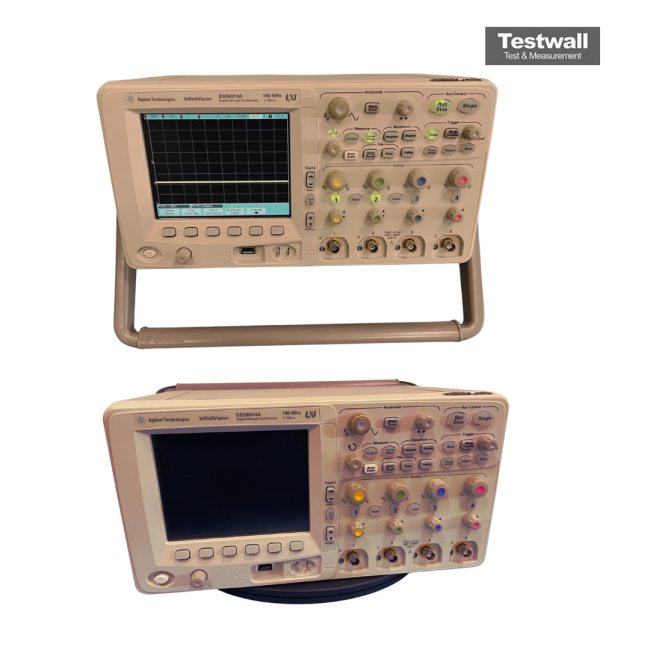

The Keysight (Agilent) DSO6014A Oscilloscope offers 100 MHz bandwidth, 4 analog channels, and a 2 GSa/s sample rate, complemented by an 8 Mpts memory depth for extensive signal capture. It features a high-definition color display with 256 intensity levels and the industry's fastest update rate of 100,000 waveforms/sec.
Ideal for debugging analog, digital, and serial signals, it includes serial trigger and decode capabilities for I2C, SPI, CAN, LIN, RS-232/UART, and I2S protocols, enhancing design validation.
Testwall can supply the used Keysight (Agilent) DSO6014A Oscilloscope, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) DSO6014A Oscilloscope.
