Keysight (Agilent) DSO7034B
| Attribute | Value |
|---|---|
| Bandwidth | 350 MHz |
| Number of Channels | 4 |
| Sample Rate | 2 GSa/s |
| Memory Depth | 8 Mpts (standard), up to 16 Mpts with option |
| Display | 8.5-inch WXGA color LCD display |
| Vertical Resolution | 8-bit |
| Vertical Sensitivity | 1 mV/div to 5 V/div |
| Time Base Range | 5 ns/div to 50 s/div |
| Trigger Types | Edge, Pulse Width, Pattern, CAN, LIN, I2C, SPI, USB, and more |
| Connectivity | USB, LAN (LXI), and GPIB (optional) |
Keysight (Agilent) DSO7034B Options:
- DSO7034B - 002 - N2873A 10:1 500 MHz passive probe with probe ID (optional in place of standard probe)
- DSO7034B - SEC - Secure Environment Mode - Provides compliance with National Industrial Security Program Operating Manual (NISPOM) Chapter 8 requirements (factory-installed option only for new purchase)
- DSO7034B - A6J - ANSI Z540 compliant calibration
- DSO7034B - AMS - CAN/LIN automotive triggering and decode (4 and 4+16 channel models only)
- DSO7034B - LSS - I2C/SPI serial decode option (for 4/4+16 channel models only)
- DSO7034B - 232 - RS-232/UART triggering and decode (4 and 4+16 channel models only)
- DSO7034B - SND - I2S Triggering and Decode (4 and 4+16 channel models only)
- DSO7034B - FLX - FlexRay Measurements (4 and 4+16 channel models only)
- DSO7034B - 553 - MIL-STD 1553 Triggering and Decode (4 and 4+16 channel models only)
- DSO7034B - SGM - Segmented memory
- DSO7034B - LMT - Mask limit testing
| Model | DSO7034B |
|---|

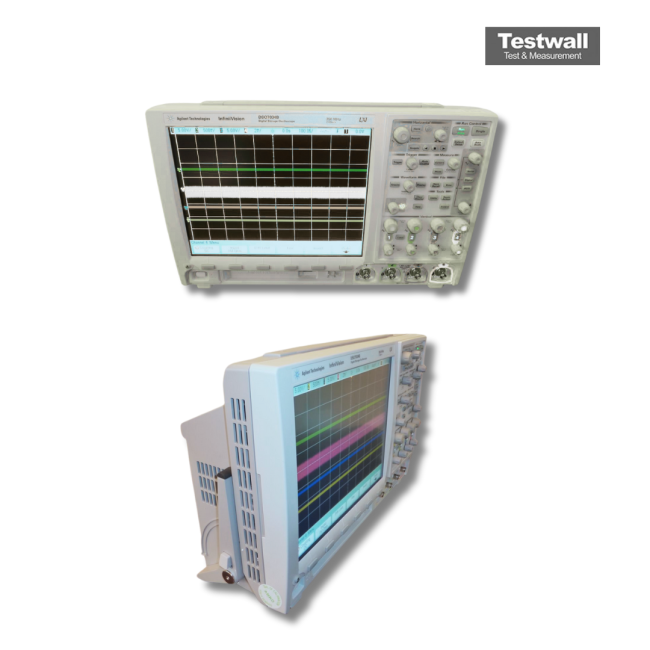

The Keysight (Agilent) DSO7034B Oscilloscope features 350 MHz bandwidth, 2 GSa/s sample rate, and 4 analog channels, housed in a compact 6.5” deep body weighing only 13 lbs. With an 8 Mpts deep memory and a 12.1” XGA display offering 256 intensity levels, it delivers exceptional signal visibility. Its 100,000 wfms/sec update rate ensures you catch rare signal anomalies effortlessly.
It supports segmented memory, mask testing, and serial protocol decoding like I2C, SPI, CAN, LIN, FlexRay, UART, I2S, and MIL-STD 1553, making it a powerful tool for precise electronic testing.
Testwall can supply the used Keysight (Agilent) DSO7034B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) DSO7034B.
