Tektronix 80A03
| Attribute | Value |
|---|---|
| Module Type | Optical-to-Electrical Converter Module |
| Wavelength Range | 750 nm to 1650 nm |
| Optical Input Connector | FC/PC |
| Electrical Bandwidth | 65 GHz |
| Compatible Instruments | Tektronix DSA8300, CSA8000, TDS8000 Series Sampling Oscilloscopes |
| Number of Channels | 1 |
| Input Power Range | -20 dBm to +3 dBm |
| Rise Time | Less than 7 ps |
| Module Form Factor | Single-slot sampling module |
| Operating Temperature | 0°C to +50°C |
Tektronix 80A03 Options:
- 80A03 - R3 - Repair Service 3 Years
- 80A03 - R5 - Repair Service 5 Years
- 80A03 - SILV400 - Standard Warranty Extended to 5 Years
| Model | 80A03 |
|---|

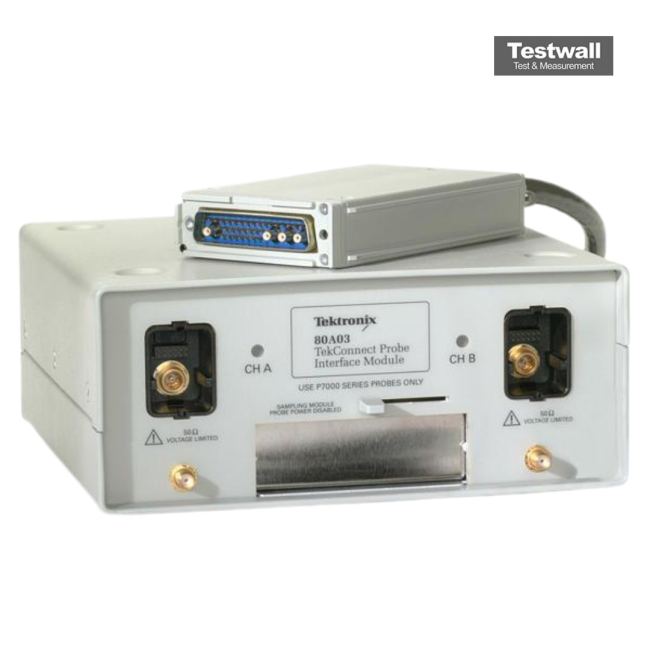

The Tektronix 80A03 TekConnect Probe Interface Module extends the DSA8300 oscilloscope’s capabilities by enabling seamless integration with Tektronix P7000 Series active and differential probes. It supports probing of high-speed electrical and optical circuits with automatic scaling, built-in power interface, and compact probe head for precision on SMD pins.
Ideal for advanced design environments, it simplifies debugging of complex circuitry without external power or manual adjustments, enhancing measurement speed and accuracy.
Testwall can supply the used Tektronix 80A03, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix 80A03.
