Keysight (Agilent)

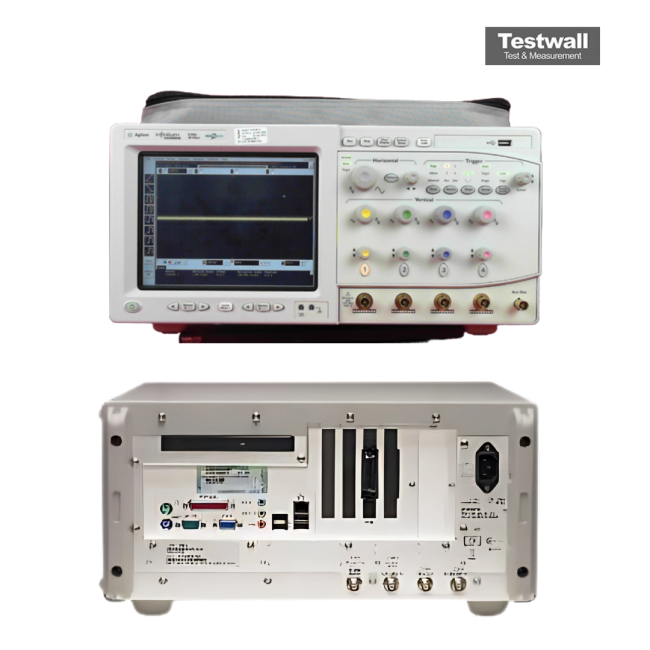

Keysight (Agilent) DSO80304B
4Channel 40GSa/s 3GHz Infiniium Oscilloscope
3 GHz Bandwidth
4 Number of Channels
40 GSa/s Sample Rate
Up to 1 Gpts (with memory option) Memory Depth
8-bit (up to 12-bit with averaging) Vertical Resolution
| Attribute | Value |
|---|---|
| Bandwidth | 3 GHz |
| Number of Channels | 4 |
| Sample Rate | 40 GSa/s |
| Memory Depth | Up to 1 Gpts (with memory option) |
| Vertical Resolution | 8-bit (up to 12-bit with averaging) |
| Rise Time | 133 ps |
| Input Impedance | 50 Ω or 1 MΩ |
| Display | 12.1-inch XGA color display |
| Operating System | Windows XP Professional |
| Connectivity | LAN, USB, GPIB |
Keysight Technologies DSO80304B Options:
- DSO80304B - 001 - 2 M (2 channels), 1 M (4 channels) memory upgrade; 64 M (2 channels at 4 GSa/s) or 32 M (4 channels ≤ 2 GSa/s)
- DSO80304B - 002 - EZJIT jitter analysis software (installed at the factory)
- DSO80304B - 003 - High-Speed Serial Data Analysis/Mask Testing with clock recovery and 8b/10b decoding (installed at the factory)
- DSO80304B - 004 - EZJIT Plus jitter analysis software (installed at the factory)
- DSO80304B - 005 - Noise reduction and bandwidth control option (installed at the factory)
- DSO80304B - 006 - My Infiniium Integration Package (installed at the factory)
- DSO80304B - 007 - Low-speed serial data analysis for I²C/SPI (installed at the factory)
- DSO80304B - 008 - Low-speed serial data analysis for CAN (installed at the factory)
- DSO80304B - 009 - InfiniiScan event identification software (installed at the factory)
- DSO80304B - 010 - Infiniium User Defined Function Application Software (installed at the factory)
- DSO80304B - 017 - ≥ 40 Gb removable hard disk drive; replaces internal hard disk with a removable hard disk
- DSO80304B - 1CM - Rack-mount kit (E2609B)
- DSO80304B - A6J - ANSI Z540-compliant calibration
| Model | DSO80304B |
|---|
The Keysight (Agilent) DSO80304B Oscilloscope delivers 3 GHz bandwidth with 4 analog channels and a maximum 40 GSa/s sampling rate, ideal for high-speed signal analysis and debugging complex systems.
It includes 2 Mpts of MegaZoom deep memory, supports the InfiniiMax 1131A probing system, and maintains precise results with a low noise floor and less than 500 fs rms trigger jitter.
Testwall can supply the used Keysight (Agilent) DSO80304B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) DSO80304B.
