Keysight (Agilent)

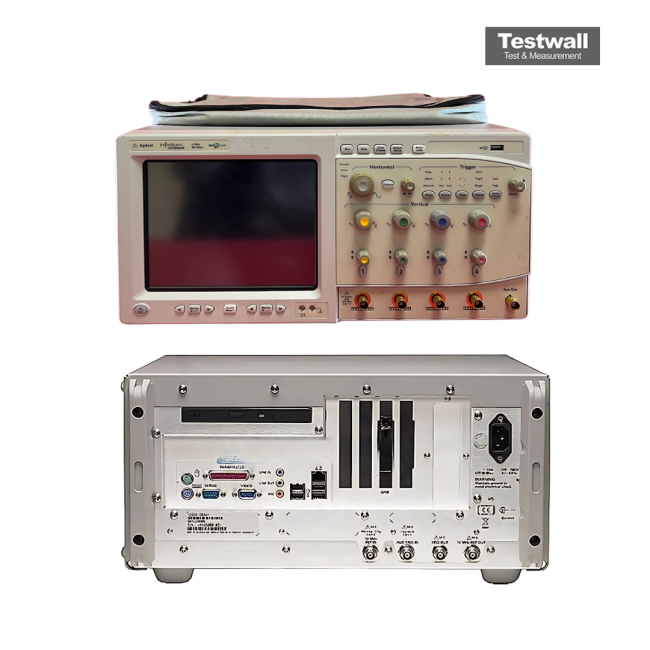

Keysight (Agilent) DSO80404B
4 Channel 40GSa/s 4GHz Digital Oscilloscope
4 GHz Bandwidth
4 Analog Channels Number of Channels
20 GSa/s Maximum Sample Rate
Up to 1 Gpts (with memory option) Memory Depth
8-bit (up to 12-bit with high-resolution mode) Vertical Resolution
| Attribute | Value |
|---|---|
| Bandwidth | 4 GHz |
| Number of Channels | 4 Analog Channels |
| Maximum Sample Rate | 20 GSa/s |
| Memory Depth | Up to 1 Gpts (with memory option) |
| Vertical Resolution | 8-bit (up to 12-bit with high-resolution mode) |
| Rise Time | 116 ps |
| Input Impedance | 50 Ω or 1 MΩ |
| Display | 12.1-inch XGA Color Display |
| Waveform Update Rate | Up to 800,000 waveforms per second |
| Connectivity / Interface | LAN, USB, GPIB |
| Model | DSO80404B |
|---|
The Keysight (Agilent) DSO80404B offers 4 GHz bandwidth with up to 40 GSa/s sampling rate, perfect for detailed high-speed signal analysis. It includes 4 analog channels and a low noise floor of 188 µV at 5 mV/div for clean measurements.
With a system bandwidth of 4 GHz using the InfiniiMax 1132A probe and less than 500 fs rms trigger jitter, it guarantees accurate and precise waveform capturing.
Testwall can supply the used Keysight (Agilent) DSO80404B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) DSO80404B.
