Keysight (Agilent)

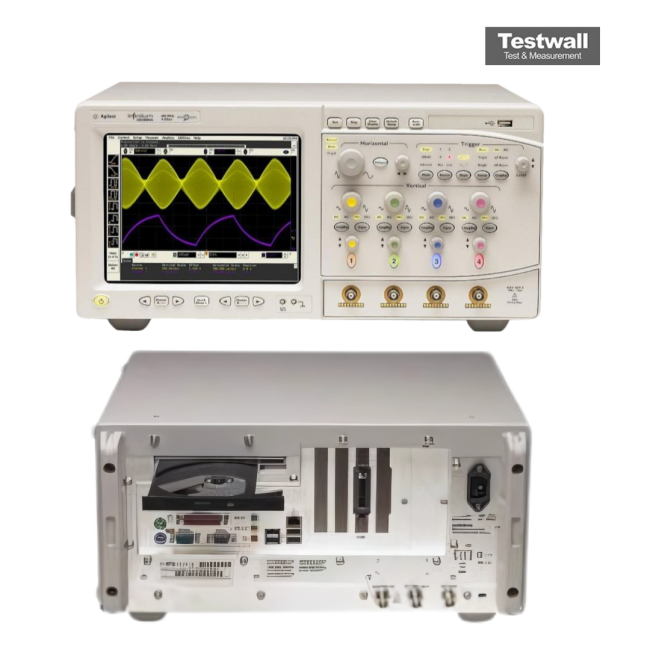

Keysight (Agilent) DSO8104A
4 Ch 1 GHz Digital Storage Oscilloscope
1 GHz Bandwidth
4 Number of Channels
4 GSa/s Maximum Sample Rate
4 Mpts per channel (8 Mpts interleaved) Memory Depth
8 bits Vertical Resolution
| Attribute | Value |
|---|---|
| Bandwidth | 1 GHz |
| Number of Channels | 4 |
| Maximum Sample Rate | 4 GSa/s |
| Memory Depth | 4 Mpts per channel (8 Mpts interleaved) |
| Vertical Resolution | 8 bits |
| Rise Time | 350 ps |
| Display | 12.1-inch XGA color display |
| Timebase Range | 1 ns/div to 50 s/div |
| Vertical Sensitivity | 1 mV/div to 5 V/div |
| Input Impedance | 1 MΩ ± 1% in parallel with 13 pF ± 3 pF, or 50 Ω ± 1.5% |
| Model | DSO8104A |
|---|
The Keysight (Agilent) DSO8104A features 1 GHz bandwidth, 4 channels, and 4 GSa/s sampling with 8 to 128 Mpts memory, running on a Windows-based UI with MegaZoom III.
Includes XGA touchscreen, drag-and-drop measurements, I2C, SPI, and CAN decode, plus vector signal analysis support.
Testwall can supply the used Keysight (Agilent) DSO8104A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) DSO8104A.
