Keysight (Agilent)

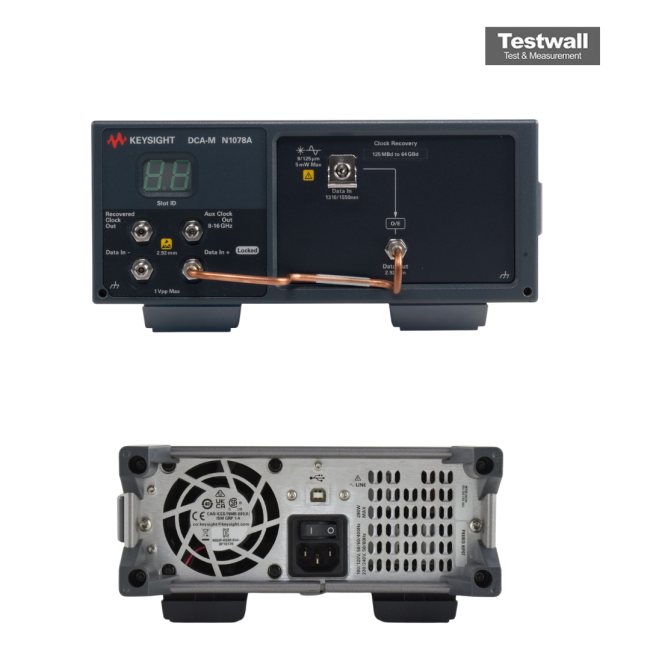

Keysight (Agilent) N1078A
Optical /Electrical Clock Recovery Module for DCA-X Mainframe
Clock Recovery Unit Instrument Type
Up to 32 Gb/s Data Rate
OIF CEI-28G, 100GBASE-KR4, IEEE 802.3bj Supported Standards
Selectable, compliant with multiple industry standards Loop Bandwidth
SMA connectors for differential data input Input Interface
| Attribute | Value |
|---|---|
| Instrument Type | Clock Recovery Unit |
| Data Rate | Up to 32 Gb/s |
| Supported Standards | OIF CEI-28G, 100GBASE-KR4, IEEE 802.3bj |
| Loop Bandwidth | Selectable, compliant with multiple industry standards |
| Input Interface | SMA connectors for differential data input |
| Output Interface | Recovered clock and data outputs via SMA connectors |
| Operating Temperature | 0°C to 55°C |
| Power Requirements | Compatible with Keysight modular test system power supply |
| Form Factor | Modular plug-in module for Keysight test platforms |
| Compatibility | Designed for use with Keysight 86100D DCA-X oscilloscope and N1000A platform |
| Model | N1078A |
|---|
Keysight (Agilent) N1078A Optical /Electrical Clock Recovery Module for DCA-X Mainframe Description: 125 MBd to 64 GBd data rate range (continuous) Compatible data signals: NRZ and PAM4 Standards-compliant clock recovery Connects to a DCA-X mainframe or PC USB interface Keysight (Agilent) N1078A Optical /Electrical Clock Recovery Module for DCA-X Mainframe
