Keysight (Agilent)

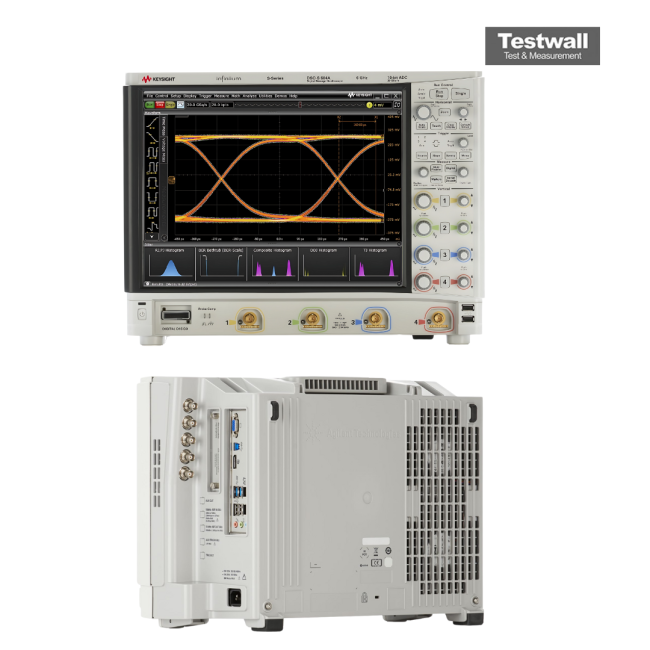

Keysight (Agilent) DSOS604A
6 GHz, 4 channel Oscilloscope
6 GHz Bandwidth
4 Analog Channels Number of Channels
20 GSa/s Sample Rate
800 Mpts (standard), up to 2 Gpts (optional) Memory Depth
8-bit (up to 10-bit in high resolution mode) Vertical Resolution
| Attribute | Value |
|---|---|
| Bandwidth | 6 GHz |
| Number of Channels | 4 Analog Channels |
| Sample Rate | 20 GSa/s |
| Memory Depth | 800 Mpts (standard), up to 2 Gpts (optional) |
| Vertical Resolution | 8-bit (up to 10-bit in high resolution mode) |
| Rise Time | 58.3 ps |
| Input Impedance | 50 Ω or 1 MΩ |
| Display | 15.6-inch capacitive touch screen, 1920 x 1080 resolution |
| Operating System | Windows 10 |
| Connectivity | USB, LAN (LXI), GPIB (optional) |
Keysight Technologies DSOS604A Options:
- DSOS604A - DSOS000-200 - Memory upgrade: 200 Mpts x 4 channels, 400 Mpts x 2 channels (factory-installed)
- DSOS604A - DSOS000-400 - Memory upgrade: 400 Mpts x 2 channels (factory-installed, single/run mode)
- DSOS604A - DSOS000-821 - Precision BNC (M) to SMA (F) adapters (qty 2)
- DSOS604A - DSOS000-1A7 - 170225 compliant calibration
- DSOS604A - DSOS000-AMG - 17025 compliant calibration with accreditation
- DSOS604A - DSOS000-A6J - ANSI Z540 compliant calibration
- DSOS604A - DSOS6GBW - Upgrade to 6 GHz bandwidth
- DSOS604A - DSOS8GBW - Upgrade to 8 GHz bandwidth
- DSOS604A - DSOS4GBW - Upgrade to 4 GHz bandwidth
- DSOS604A - DSOS2G5BW - Upgrade to 2.5 GHz bandwidth
- DSOS604A - DSOS2GBW - Upgrade to 2 GHz bandwidth
- DSOS604A - DSOS1GBW - Upgrade to 1 GHz bandwidth
- DSOS604A - N2113A-100 - Memory upgrade: 50 Mpts/100 Mpts to 100 Mpts/200 Mpts (post-sale)
- DSOS604A - N2113A-200 - Memory upgrade: 100 Mpts/200 Mpts to 200 Mpts/400 Mpts (post-sale)
- DSOS604A - N2113A-400 - Memory upgrade: 200 Mpts/400 Mpts to 400 Mpts/800 Mpts (post-sale)
- DSOS604A - N2901E - MSO upgrade kit (upgrades DSO to MSO in less than 1 minute)
- DSOS604A - N2902B - S-Series rackmount kit (8U high)
- DSOS604A - N2746S - Additional SSD with Windows 7
- DSOS604A - N4865A - GPIB to LAN adapter
| Model | DSOS604A |
|---|
The Keysight (Agilent) DSOS254A is a 2.5 GHz S-Series oscilloscope with 4 analog channels, 10-bit ADC, 20 GSa/s sampling, and 100 Mpts/channel memory. It supports vertical resolution up to 16 bits with ENOB of 8.1 at full bandwidth.
Includes a 15” capacitive touchscreen, protocol analysis software, and all standard accessories for high-performance testing.
Testwall can supply the used Keysight (Agilent) DSOS254A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) DSOS254A.
