Tektronix MDO3054
| Attribute | Value |
|---|---|
| Bandwidth | 500 MHz |
| Number of Analog Channels | 4 |
| Sample Rate | 2.5 GS/s |
| Record Length | 10 M points |
| Vertical Resolution | 8-bit (11-bit with Hi Res mode) |
| Integrated Spectrum Analyzer Frequency Range | 9 kHz to 3 GHz |
| Digital Channels | 16 (with optional MDO3MSO module) |
| Display | 9-inch WVGA (800 x 480) TFT color display |
| Waveform Capture Rate | Up to 280,000 waveforms per second |
| Arbitrary Function Generator (AFG) | Optional integrated AFG with 13 predefined waveform types, 50 MHz sine wave output |
Tektronix MDO3054 Options:
Options available for the Tektronix MDO3000 Series. Installed options vary from unit to unit – ask us for the exact configuration of the instrument you are interested in.
- MDO3054 - MDO3AFG - Built-in 50 MHz arbitrary/function generator
- MDO3054 - MDO3MSO - Mixed signal option, 16 digital channels
- MDO3054 - MDO3SA - Extend spectrum analyzer input to 9 kHz - 3 GHz
- MDO3054 - MDO3SEC - Enhanced security
- MDO3054 - MDO3AERO - Aerospace serial triggering and analysis (MIL-STD-1553, ARINC 429)
- MDO3054 - MDO3AUDIO - Audio serial triggering and analysis (I2S, LJ, RJ, TDM)
- MDO3054 - MDO3AUTO - Automotive serial triggering and analysis (CAN, LIN)
- MDO3054 - MDO3COMP - Computer serial triggering and analysis (RS-232/422/485, UART)
- MDO3054 - MDO3EMBD - Embedded serial triggering and analysis (I2C, SPI)
- MDO3054 - MDO3FLEX - FlexRay serial triggering and analysis
- MDO3054 - MDO3USB - USB 2.0 serial triggering and analysis
- MDO3054 - MDO3LMT - Limit and mask testing
- MDO3054 - MDO3PWR - Power measurement and analysis

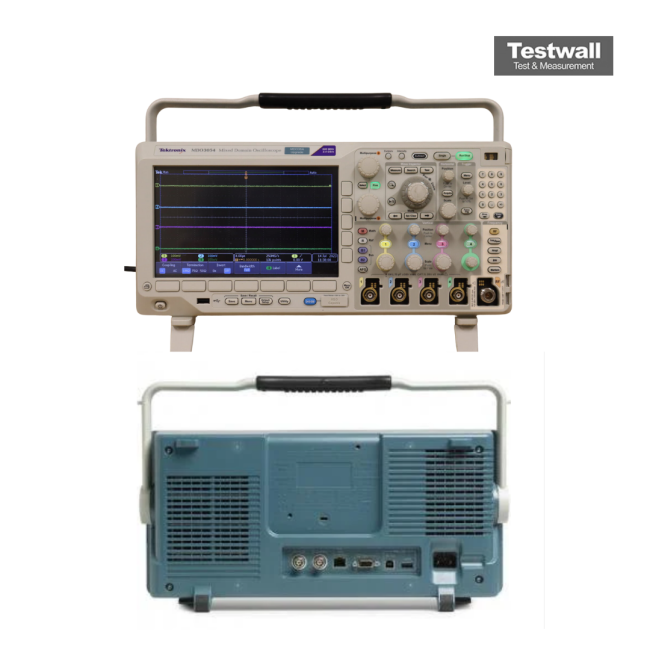

The Tektronix MDO3054 is a 4-channel, 500 MHz bandwidth benchtop oscilloscope with a 2.5 GSa/s sampling rate and a vivid color WVGA display. Supporting input voltages up to 300 V, it features USB interface connectivity and is engineered for detailed analog signal analysis.
This 6-in-1 integrated tool incorporates a spectrum analyzer, arbitrary function generator, logic analyzer, protocol analyzer, and digital voltmeter/counter, making it versatile for diverse test environments.
Testwall can supply the used Tektronix MDO3054, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix MDO3054.
